Pipe edge bevelling tool TWISTER
For machining tubes Ø 0.76“ - 2.75“ (19.5 - 70 mm)

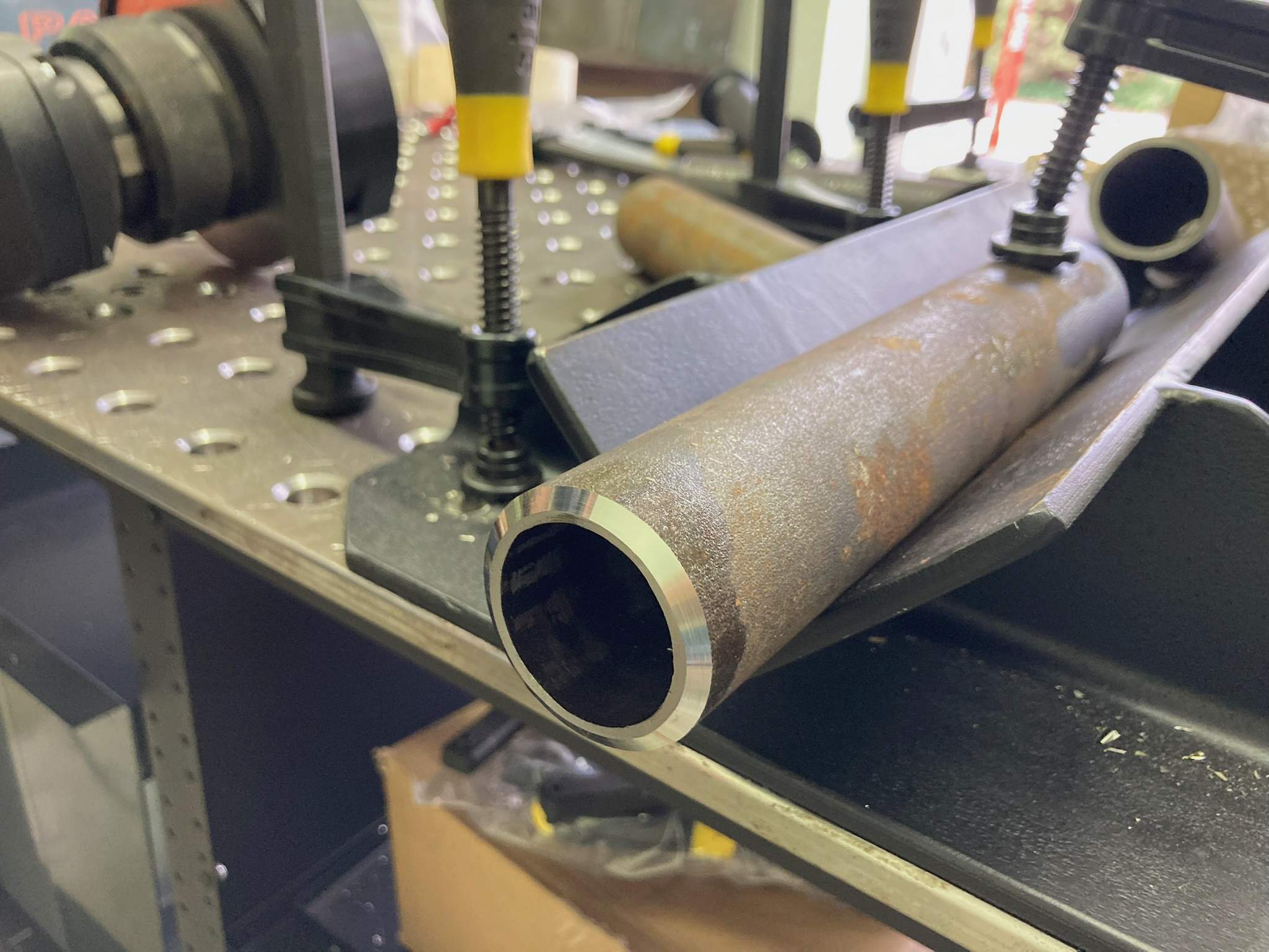

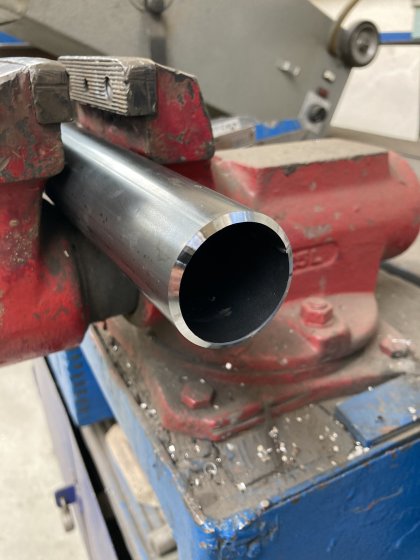

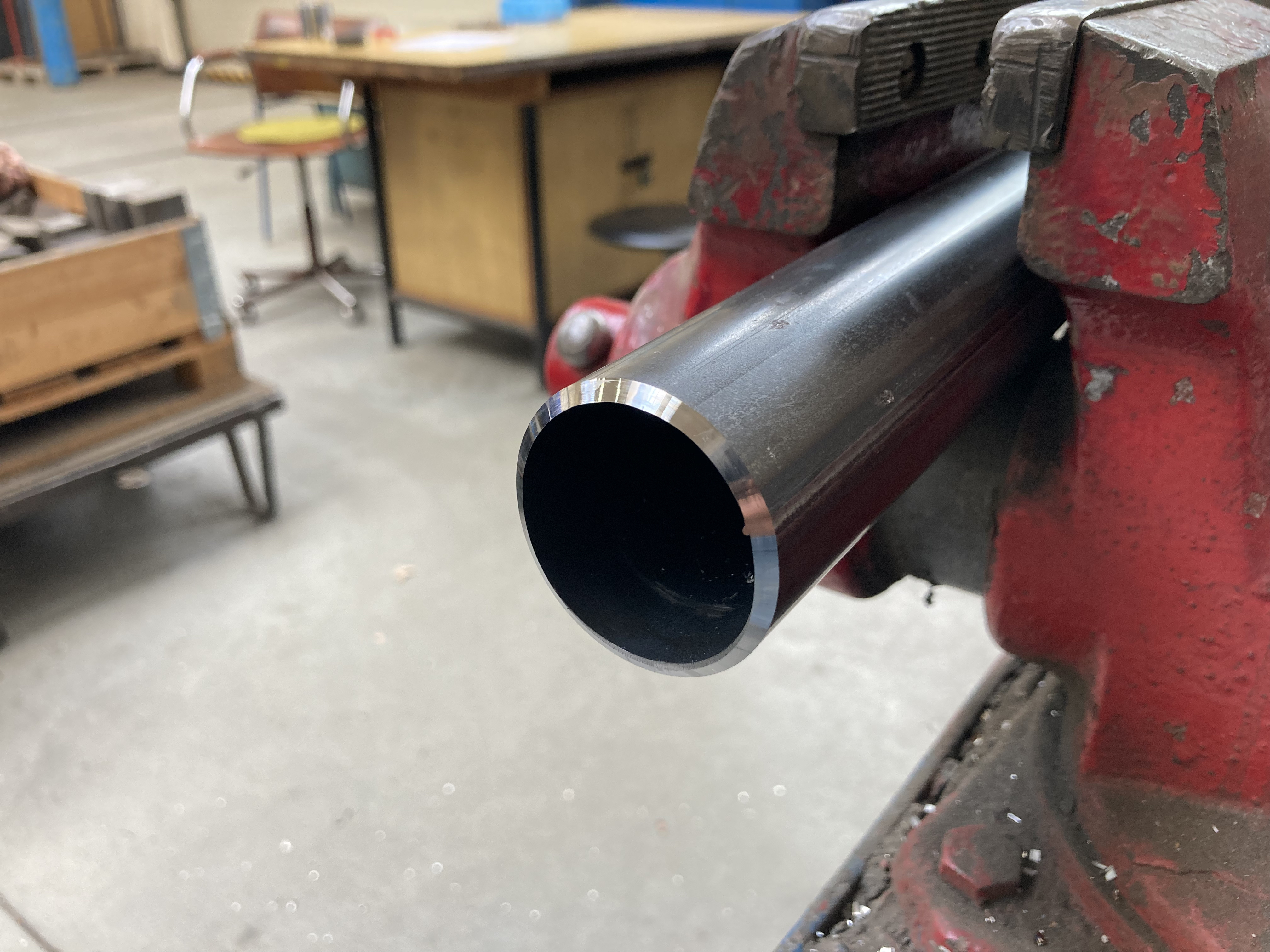

The Twister tool is designed for machining pipe ends to prepare weld surfaces or deburring the pipe.

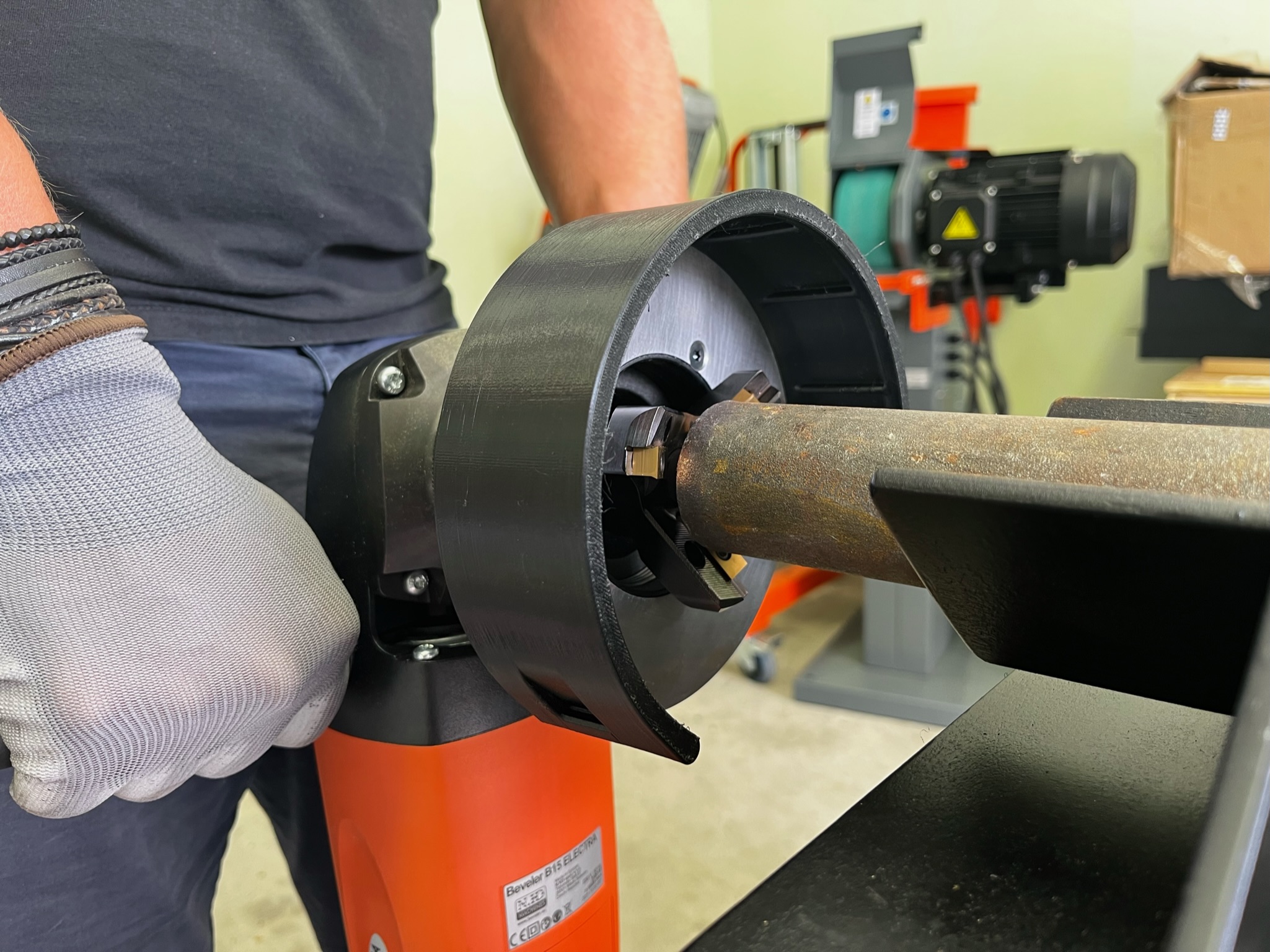

Milling head is designed for use with N.KO Machines B15 Electra and B15 AIR machines. Alternatively B10 Electra.
The Twister tool has been developed for machining iron, carbon structural steel, non-ferrous metals and plastics.

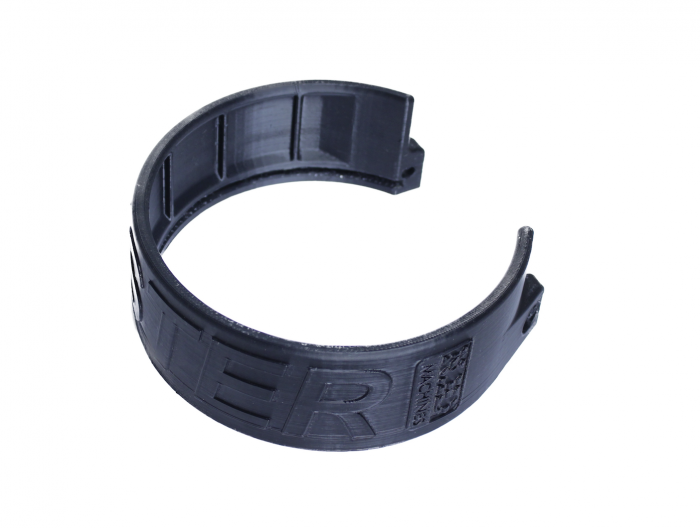

The Twister must be used only with the safety cover. The safety cover is not included in the price. The safety cover art. nr.: 27409

Twister 2-3000
  • Bevel angle: 30°
  • Min. diameter of machined pipe: 0.76“ (19.5 mm)
  • Max. diameter of machined pipe: 2.75“ (70 mm)
  • Max. bevel width: 0.39“ (10 mm)
  • Number of cutting inserts: 3 pcs

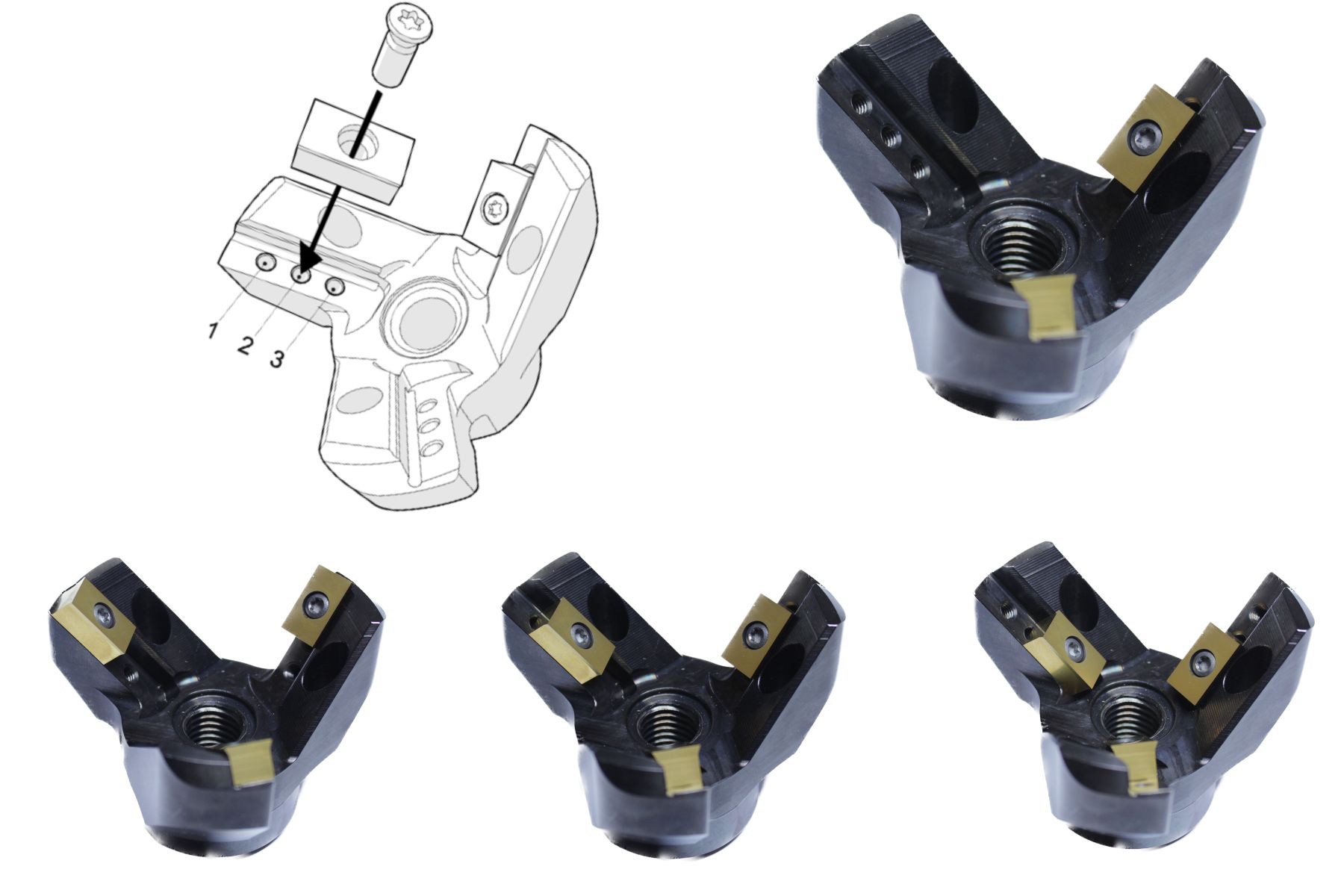

  • Number of mounting positions for cutting inserts: 3
  • Tool weight (fully assembled, including guide mandrel): approx. 0.99 lb (450 g)
Twister 2-3705
  • Bevel angle: 37.5°
  • Min. diameter of machined pipe: 0.76“ (19.5 mm)
  • Max. diameter of machined pipe: 2.59“ (66 mm)
  • Max. bevel width: 0.39“ (10 mm)
  • Number of cutting inserts: 3 pcs
  • Number of mounting positions for cutting inserts: 3
  • Tool weight (fully assembled, including guide mandrel): approx. 0.99 lb (450 g)
Twister 2-4500
  • Bevel angle: 45°
  • Min. diameter of machined pipe: 0.76“ (19.5 mm)
  • Max. diameter of machined pipe: 2.36“ (60 mm)
  • Max. bevel width: 0.39“ (10 mm)
  • Number of cutting inserts: 3 pcs
  • Number of mounting positions for cutting inserts: 3
  • Tool weight (fully assembled, including guide mandrel): approx. 0.99 lb (450 g)

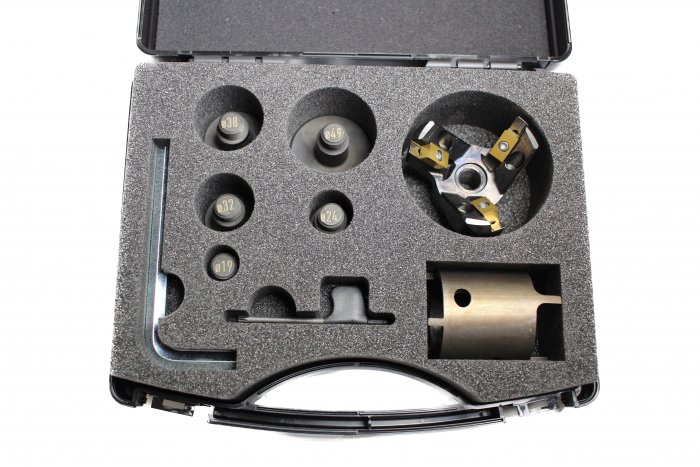

Included in the price:

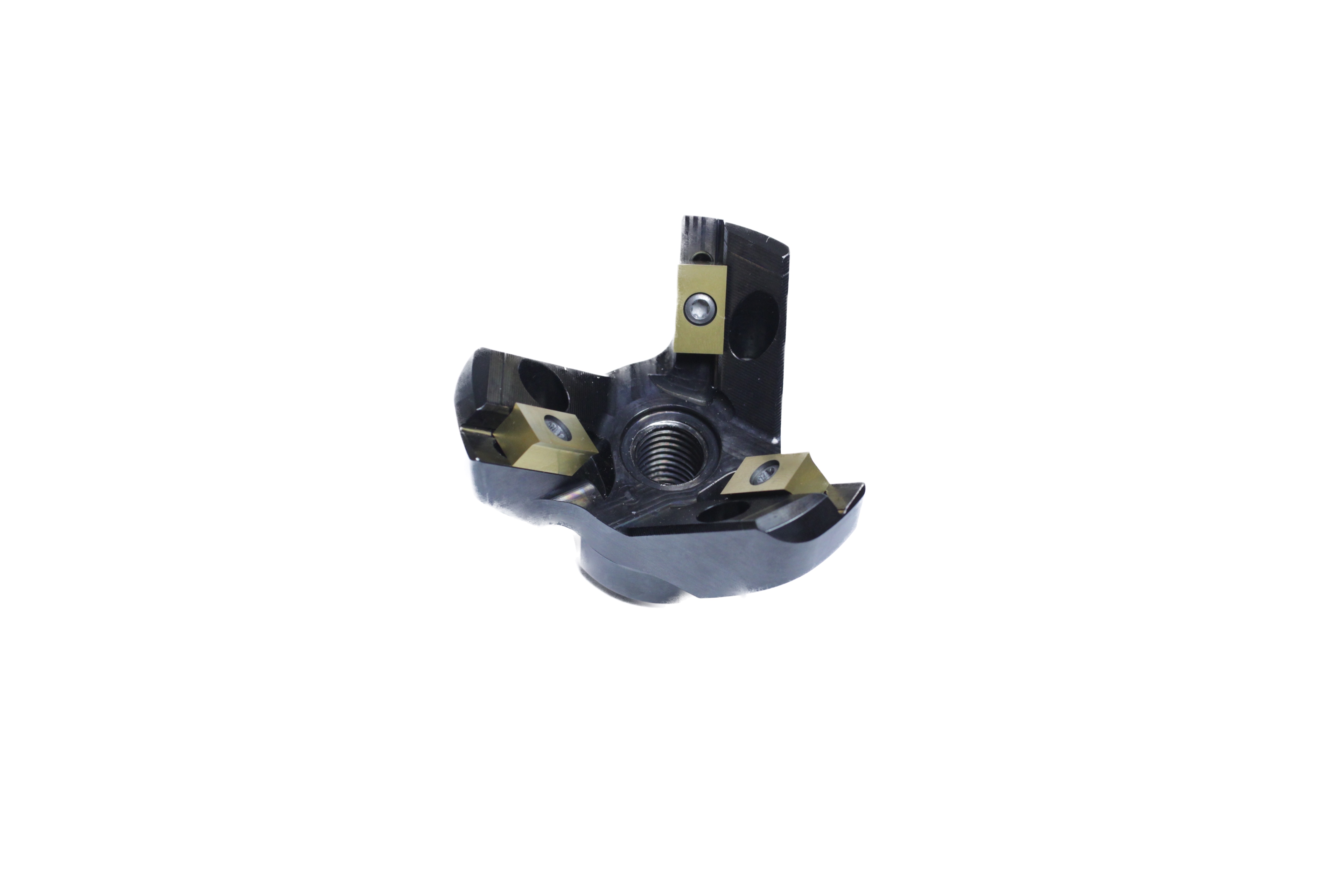

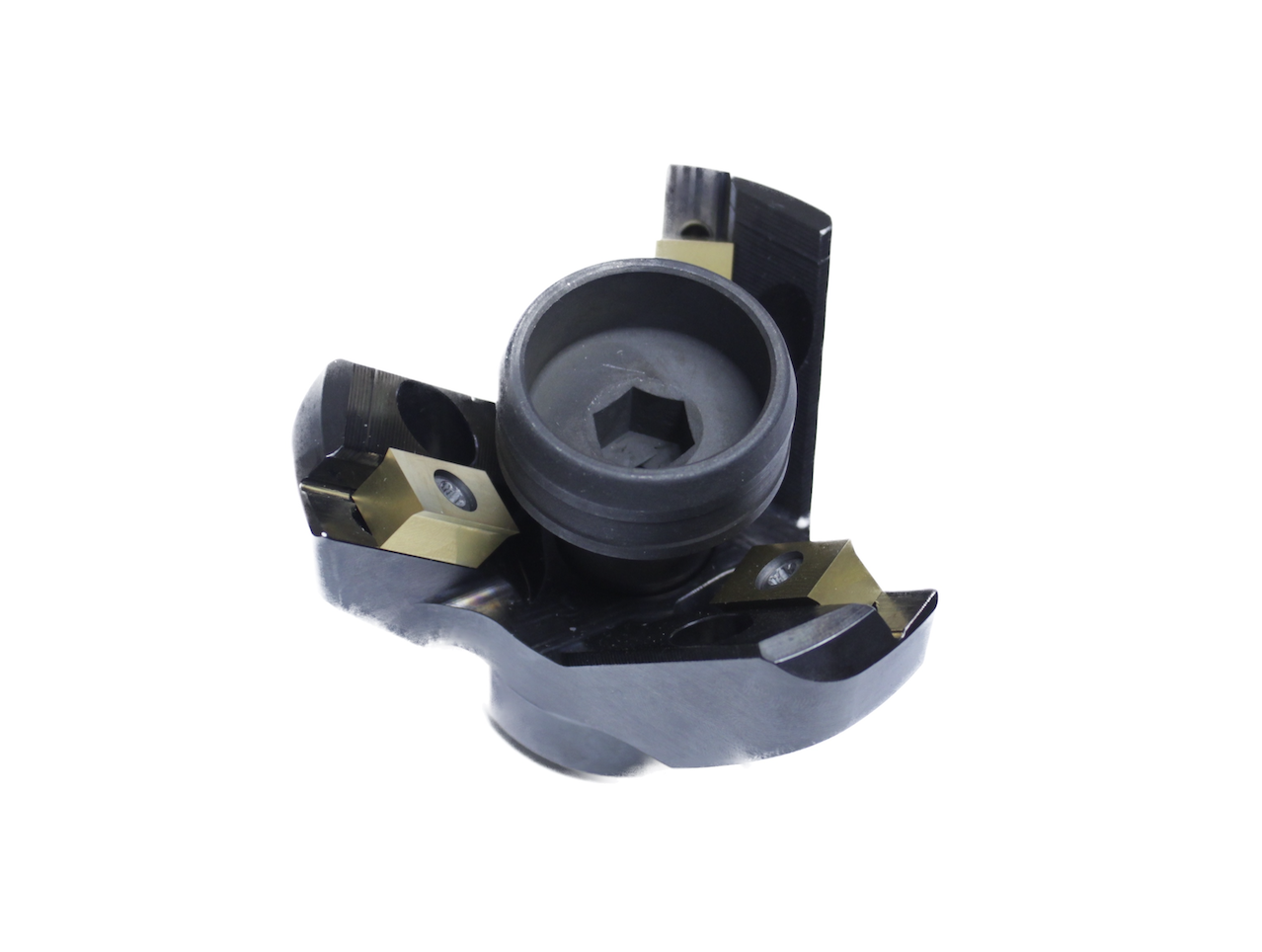

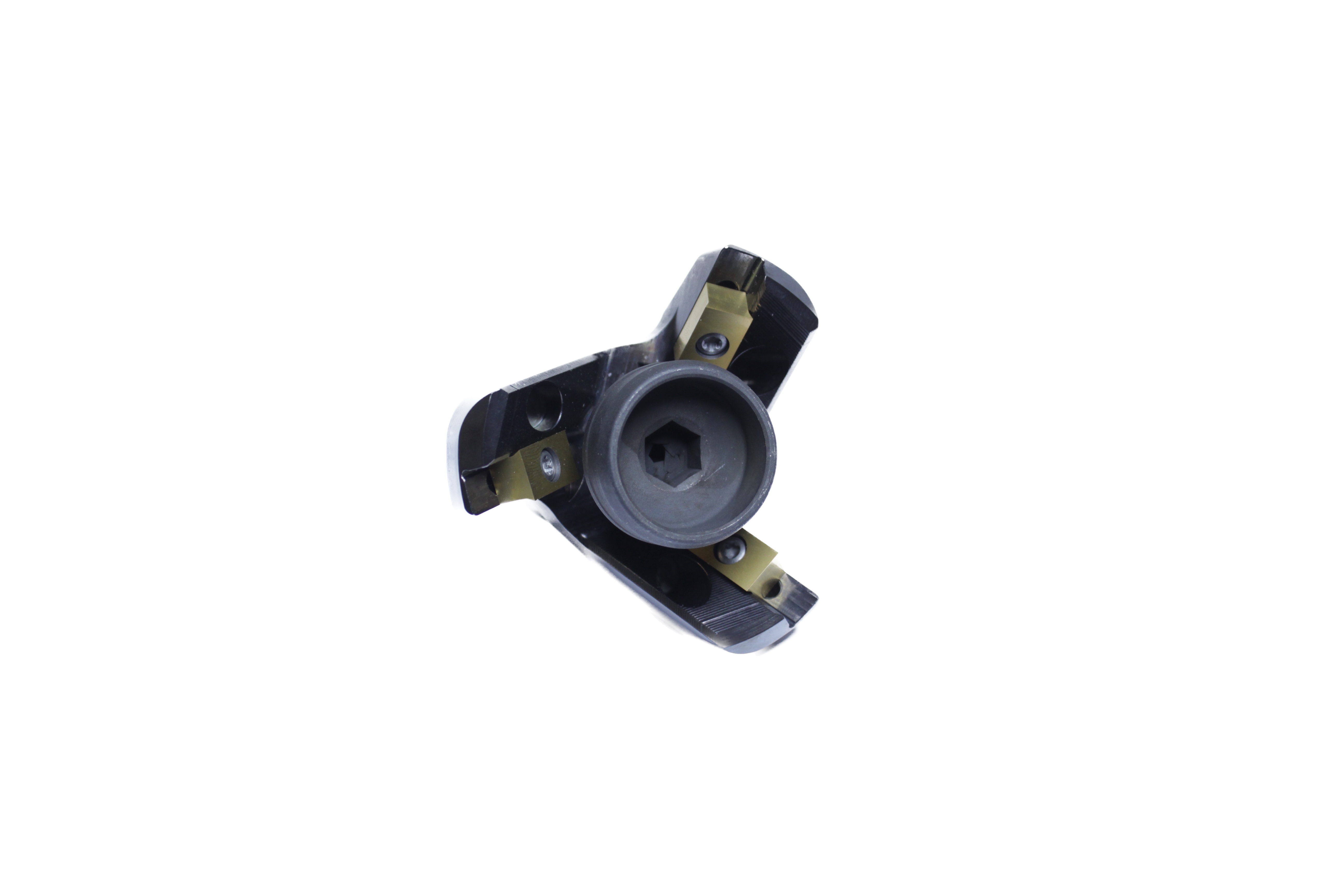

  • Milling head Twister fitted with cutting inserts
  • Set of guide mandrel – 0.74" (19 mm), 0.94" (24 mm), 1.25" (32 mm), 1.49" (38 mm), 1.92" (49 mm)
  • Tools for an operator
Art.Nr.
Twister 2-3000 (30°)27200
Twister 2-3705 (37,5°)27201
Twister 2-4500 (45°)27202

Accessories:Art.Nr.
Coated cutting inserts two sided
- set of 10pcs		28015
Fastening screw for the cutting inserts (1 pc)28007
Safety cover27409

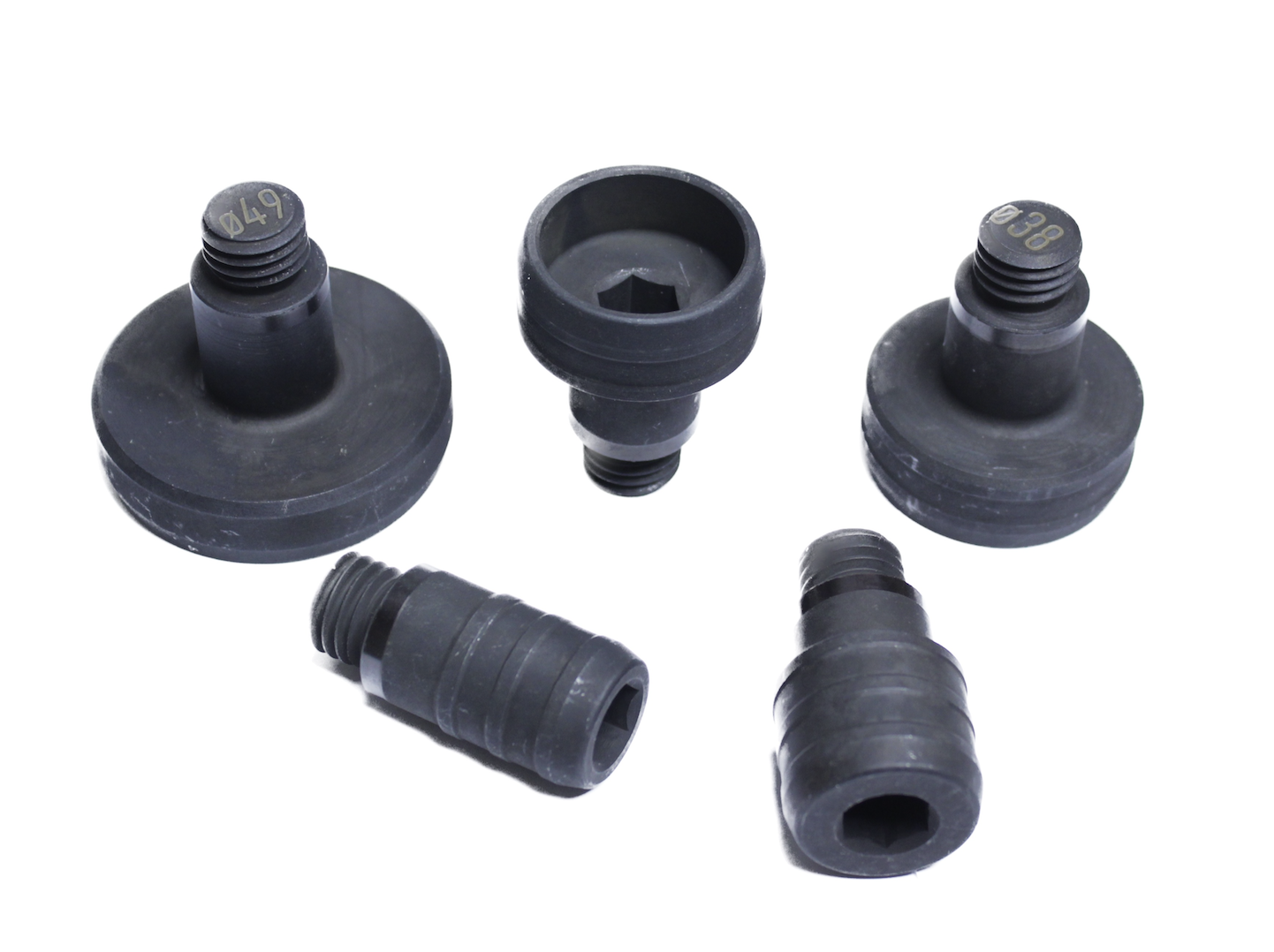

Centering mandrel 0.74" (19 mm)27403
Centering mandrel 0.94" (24 mm)27404
Centering mandrel 1.25" (32 mm)27405
Centering mandrel 1.49" (38 mm)27406
Centering mandrel 1.92" (49 mm)27407
Customized centering mandrel274XXX
Allen key for mounting the centering mandrel27408
Universal tube key for milling head’s removing25300_27
Wrench with flag handle for mounting cutting insertsTORX_T15
Special lubricating paste for the milling heads 0.27 lb (120 g)
- prevents seizing up, wear, cold-welding, solidifying of the threads		33005
Magnetic Swarf Remover
– mag brush is extremely light-weight and is optimal for removing metal chips		18654
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 17.71 in (450 mm)		NMF0107
