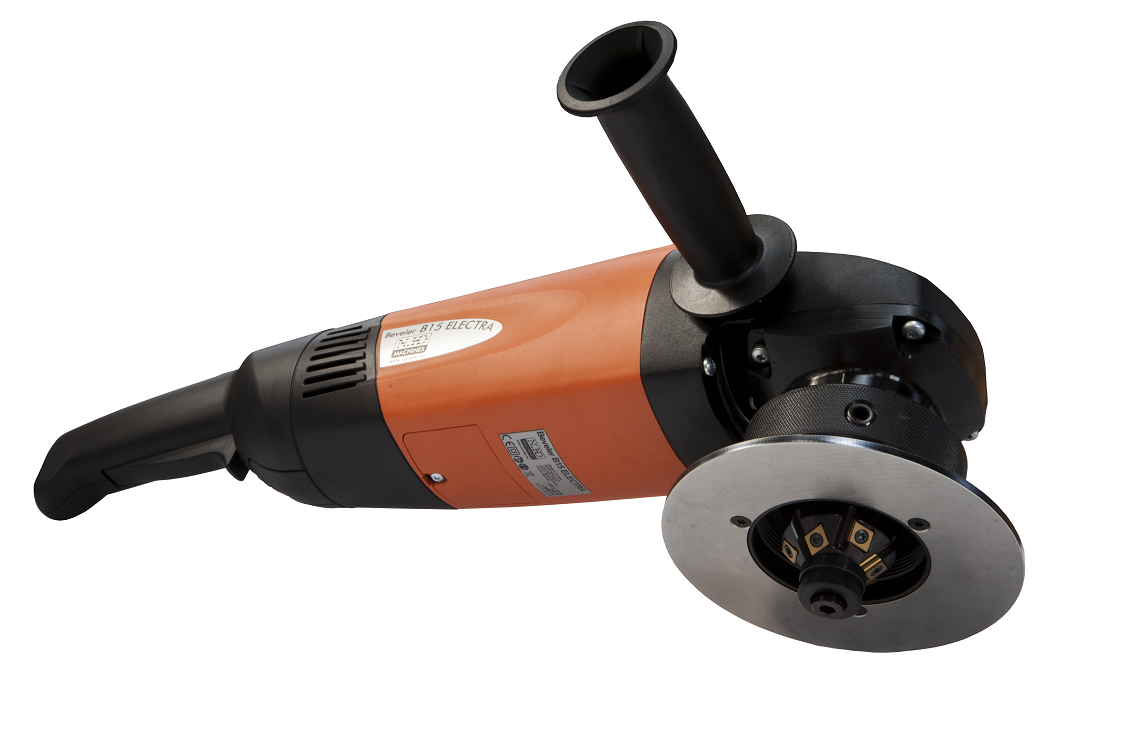

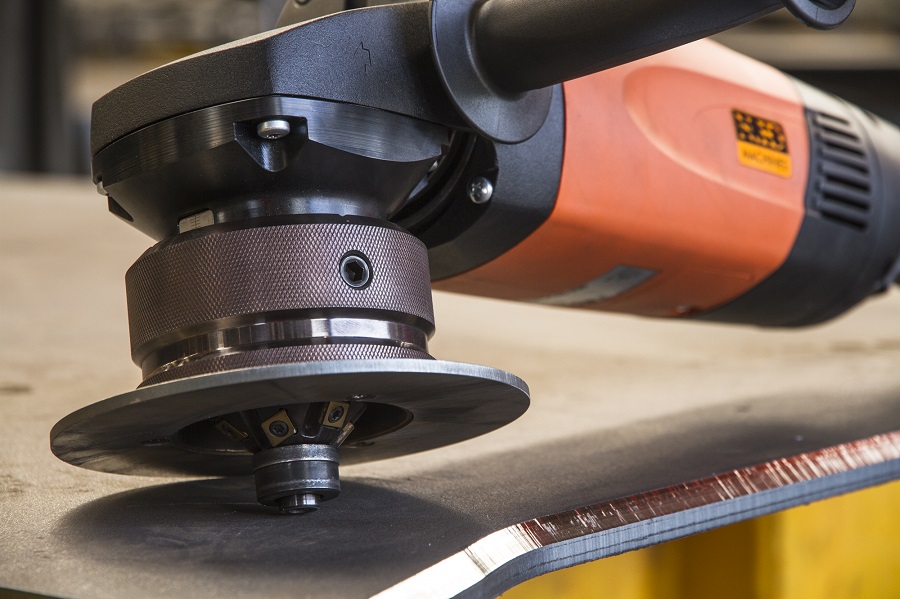

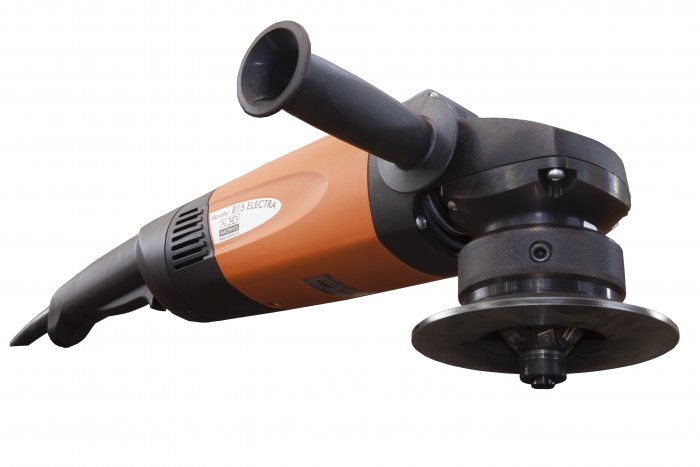

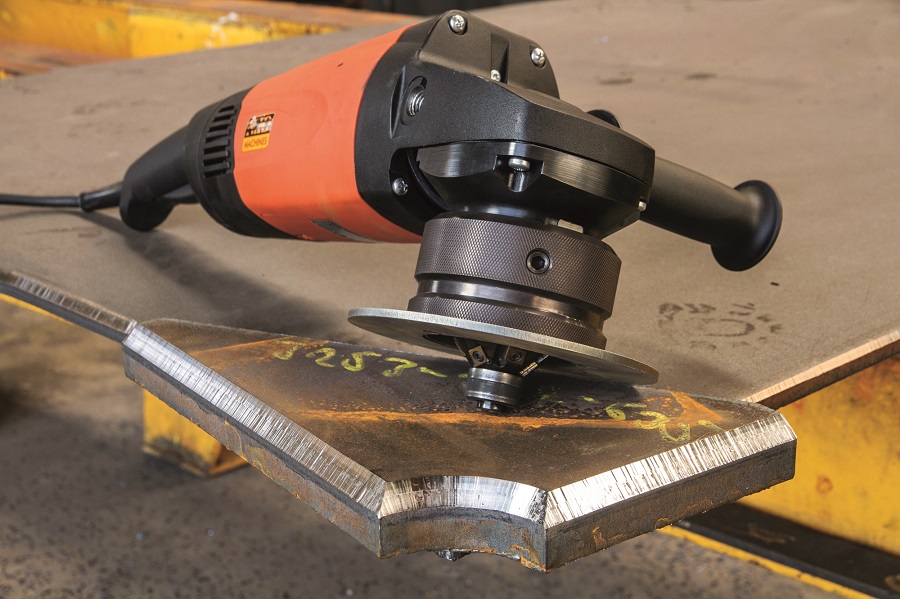

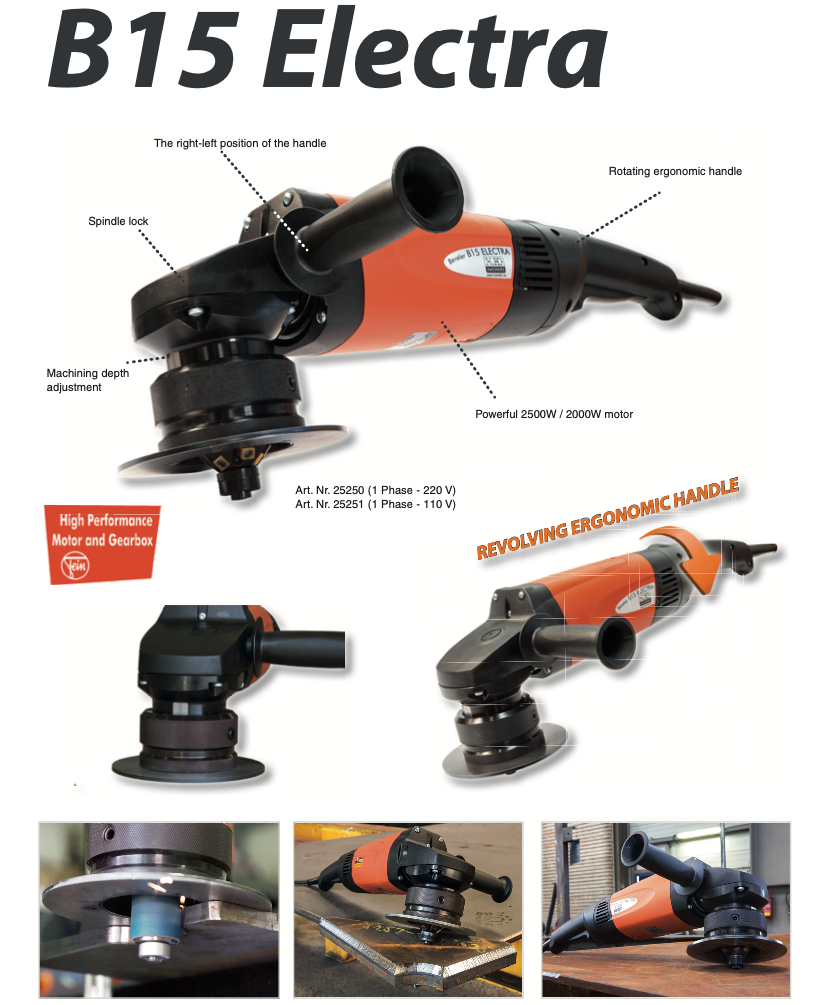

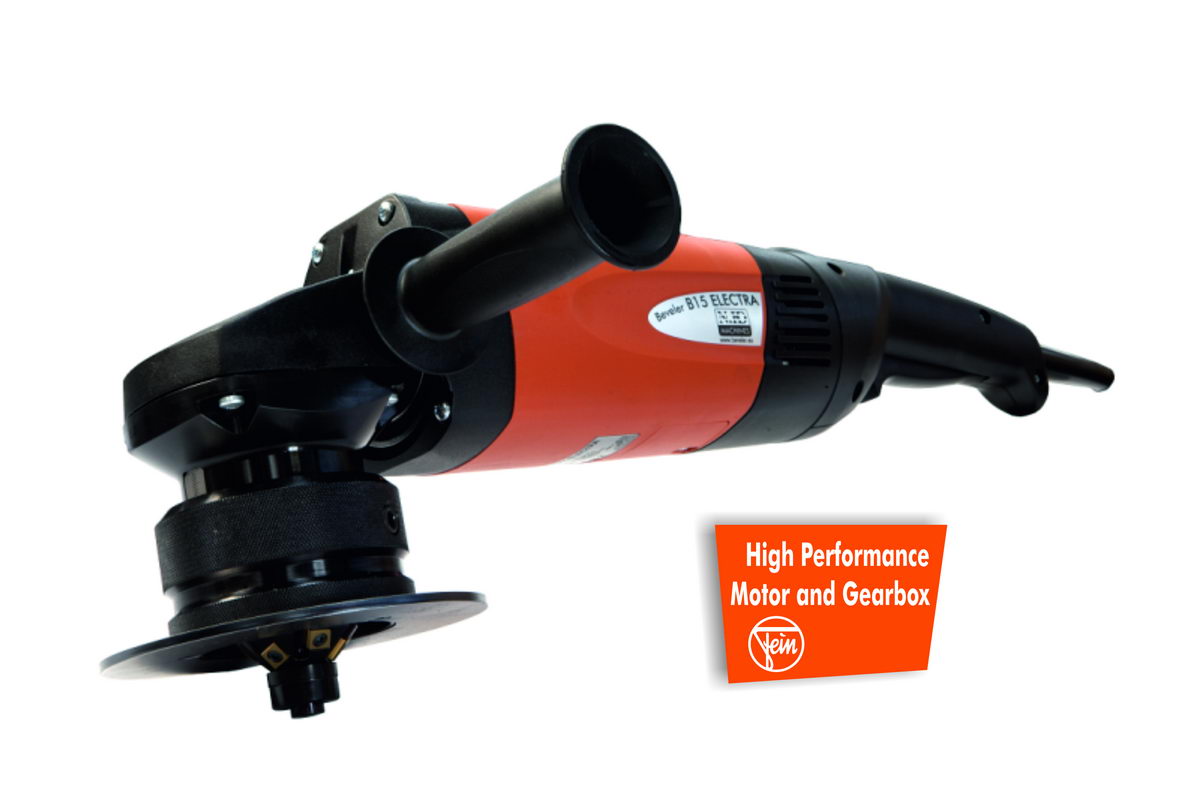

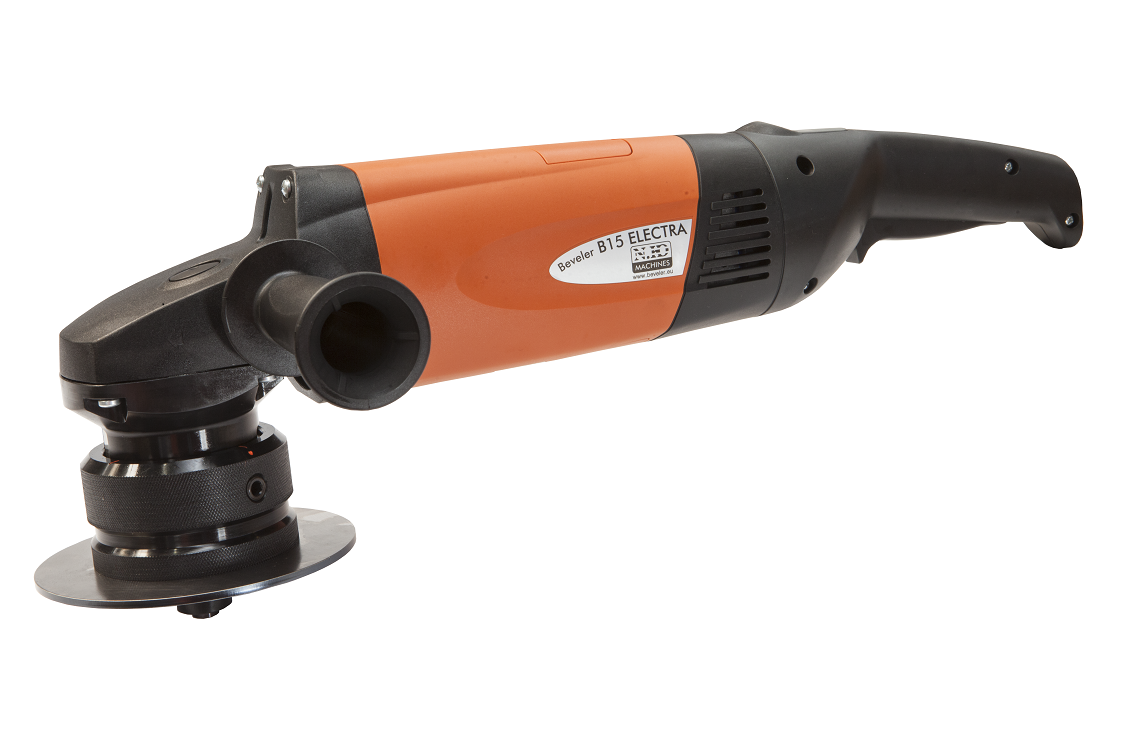

Système à chanfreiner B15 ELECTRA (max. largeur de biseau 0,6" / 15 mm )

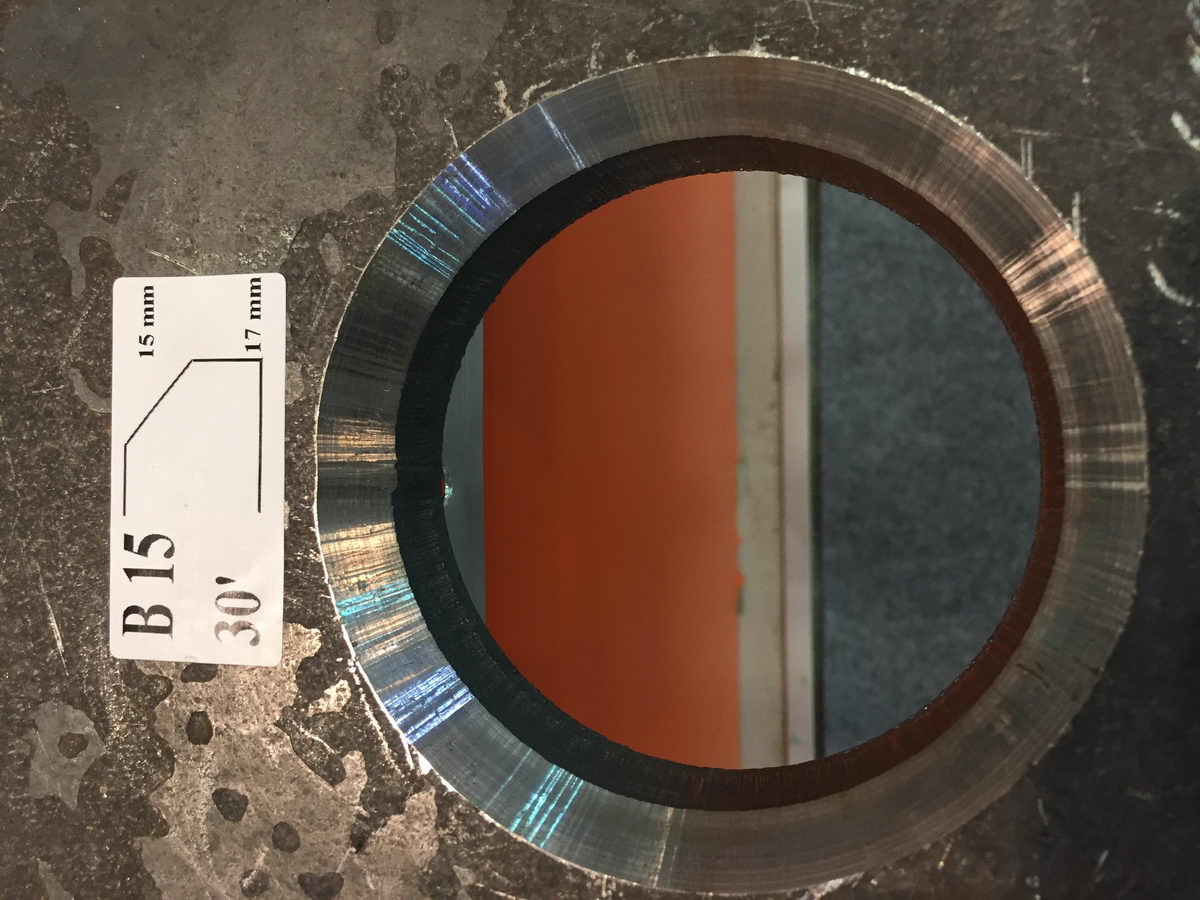

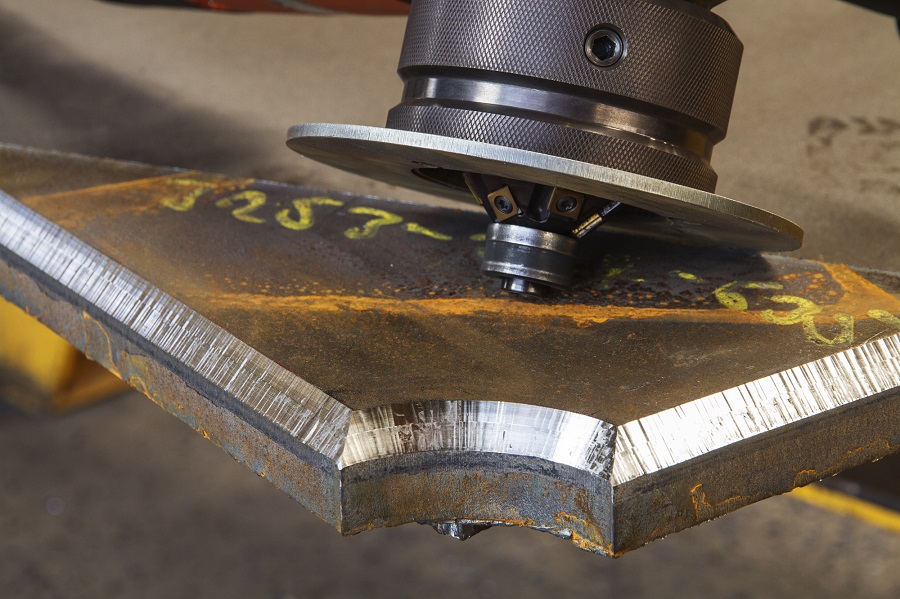

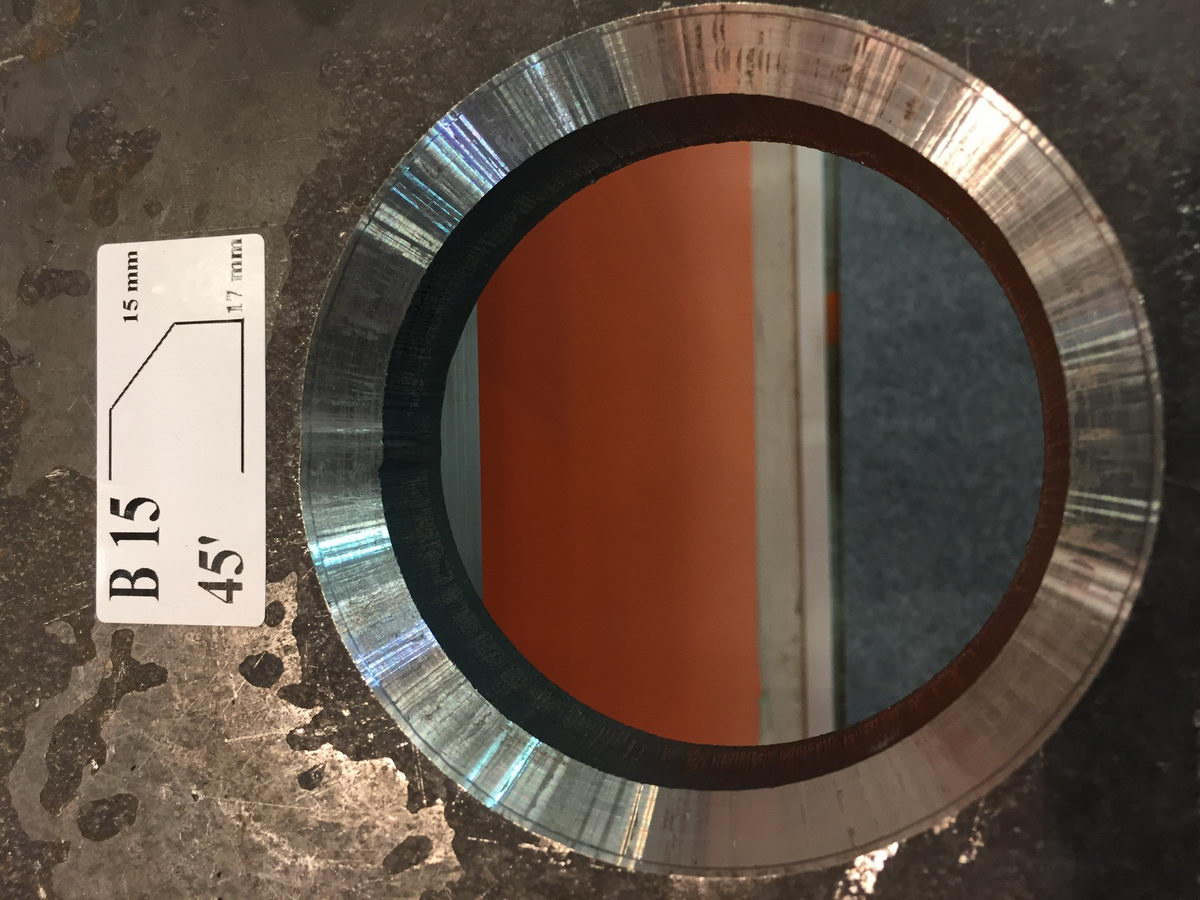

Destiné au chanfreinage des rayons intérieurs et extérieurs, ainsi qu’au chanfreinage des orifices.
Développé spécialement pour la production de chanfreins apparents et pour la préparation à la soudure.

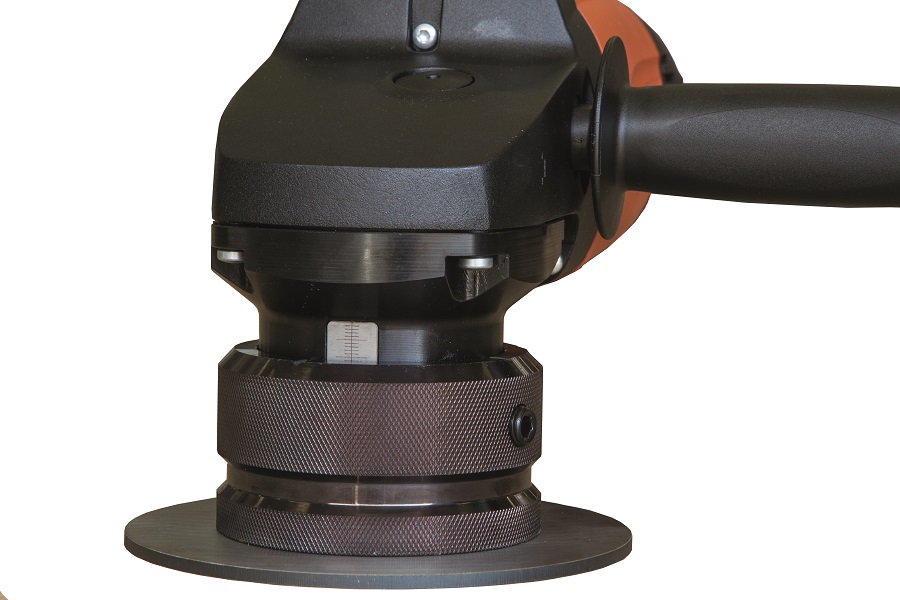

  • le réglage de la taille du chanfrein ne nécessite aucun outil
  • pour le travail des aciers courants et ennoblis, de l’aluminium et d’autres matériaux
  • tête interchangeable pour des chanfreins de 30°;37,5°; 45°;50°;60°
  • dispositif manuel performant



Informations techniques:

  • Angle de chanfreinage: 30°, 37,5°; 45°;50°;60°
  • Largeur du chanfrein: 0-0,6" / 0 - 15 mm < 58 015 PSI / 400 N/mm2; 0 - 0,3," / 0 to 8mm > 58 015 PSI / 400 N/mm2
  • Moteur: 110V/50Hz (230V/ 50 Hz)
  • Puissance du moteur: 2000 W (2500 W)
  • Vitessec: 6600 tours/min
  • Poids: environ 20,9 lbs / 9,5 kg
Compris dans le prix:
  • Système de chanfreinage et d’ébarbage B15 ELECTRA
  • Coffre de transport
  • Notice
Machine name:
1Phase-120V
Bevelling and deburring system
B15 ELECTRA (without the milling head)		25251
SET Bevelling system B15 ELECTRA + dock station B-Dock (without the milling head)25253
SET Bevelling system B15 ELECTRA + Xpipe Beveler (without the milling head)25256
SET Bevelling system B15 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head)25257

Accessories – PREMIUM milling heads:Art.Nr.

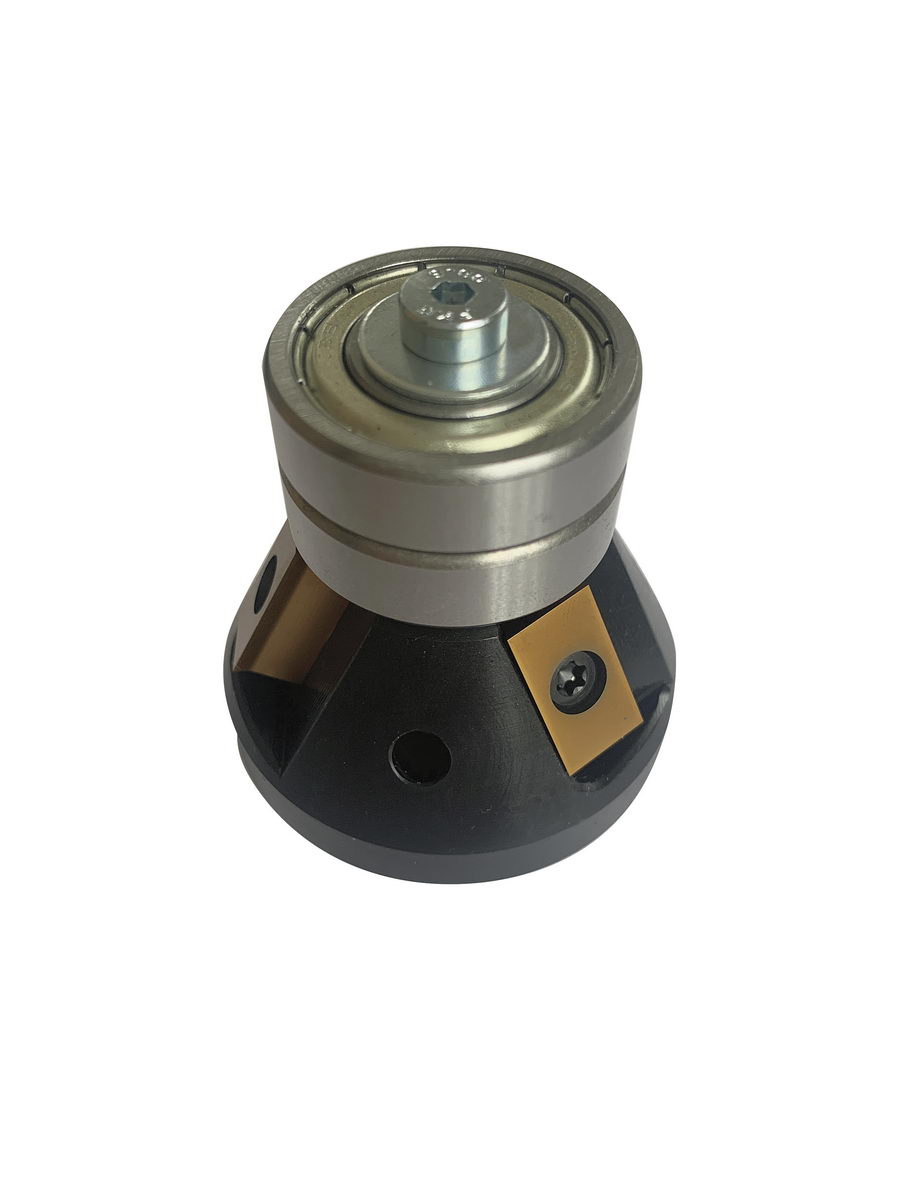

30° milling head PREMIUM
- the cutting inserts and the lead roller Ø 30 mm / 1.19“ are included		27223X
37,5° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27227X

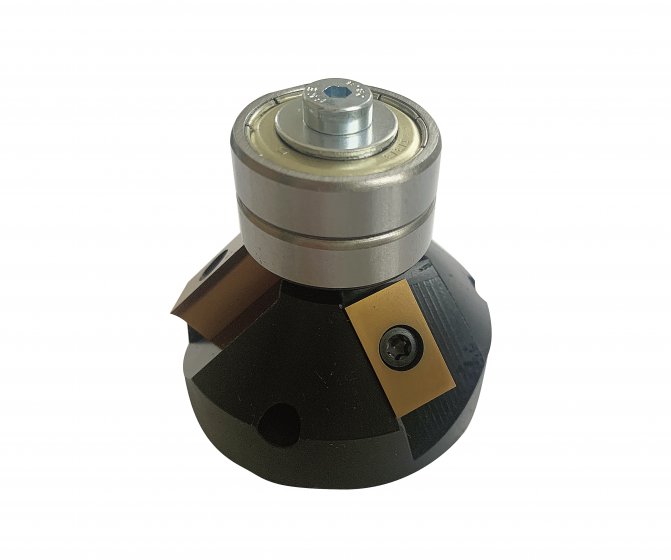

45° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27222X
50° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27224X

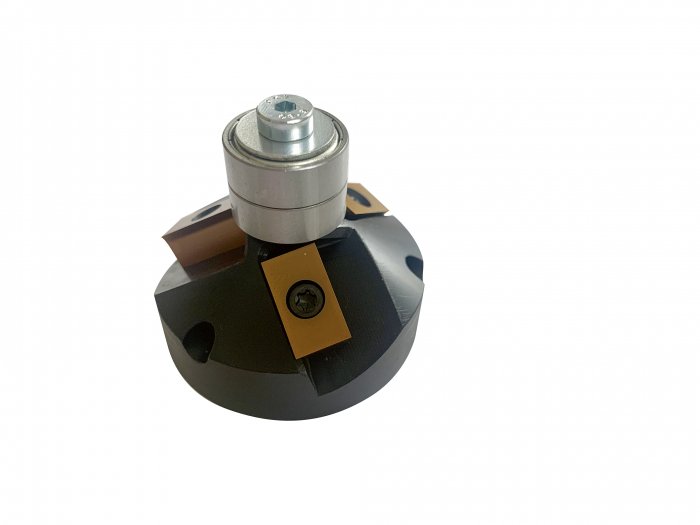

60° milling head PREMIUM
- the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included		27240X

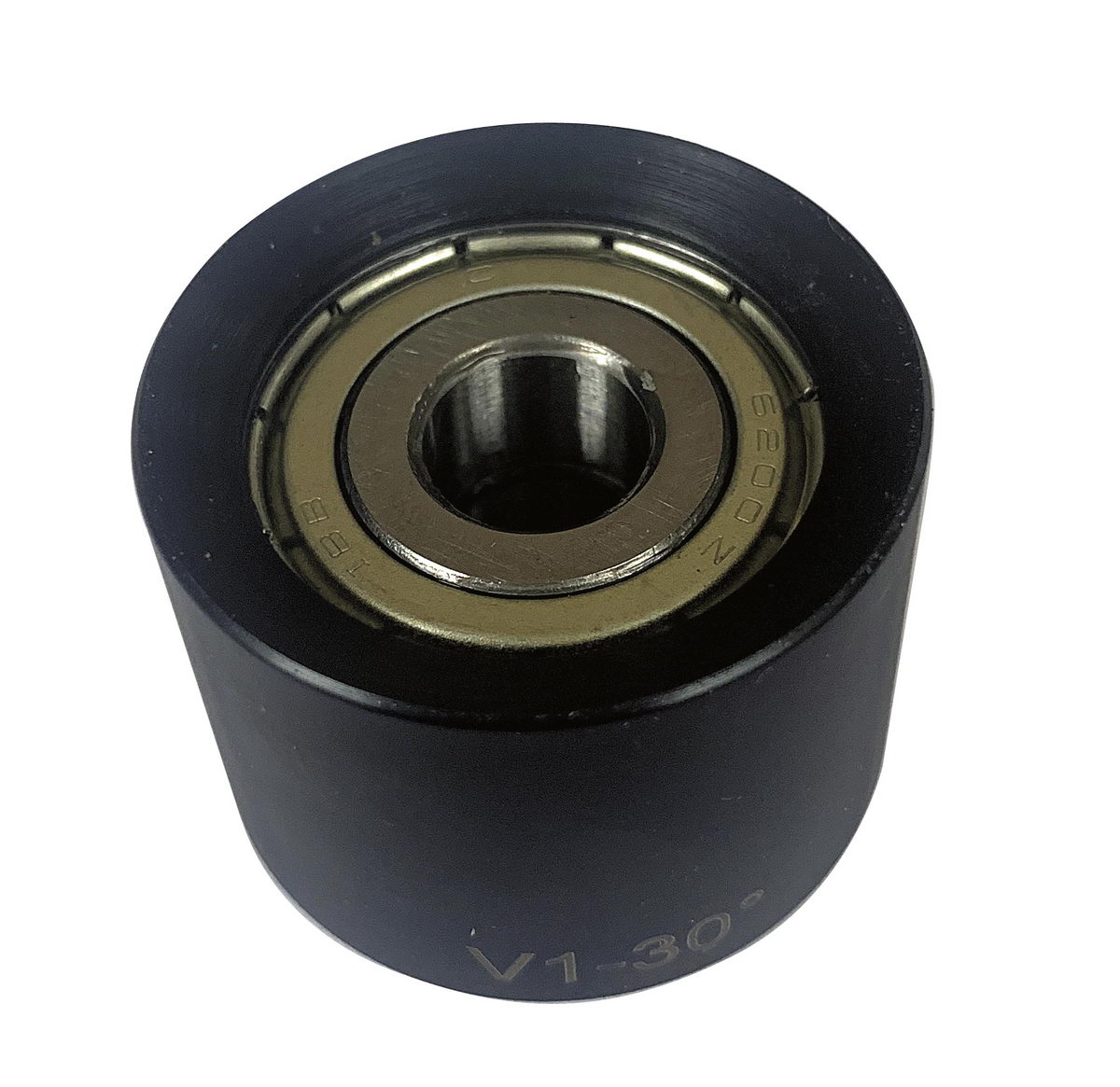

The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“28004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“28013

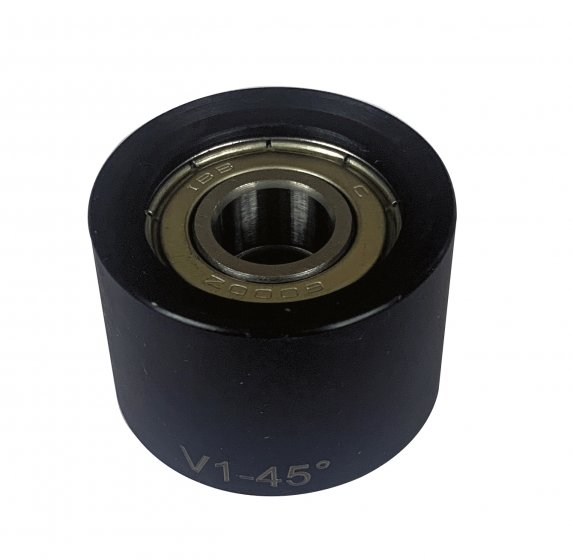

The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“28005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“28014

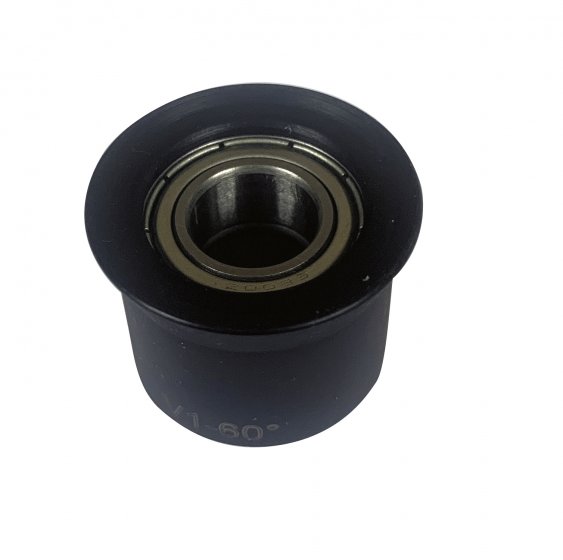

The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“28006

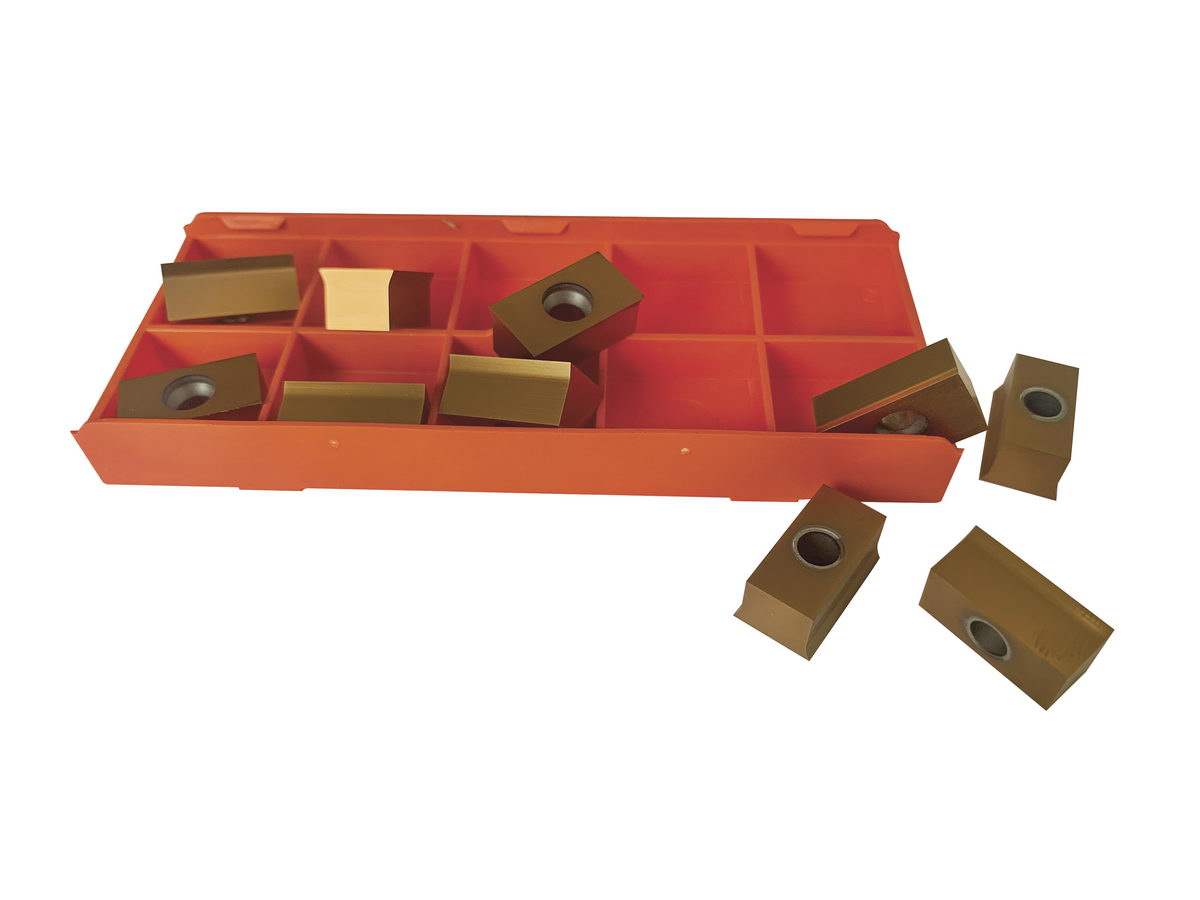

The spare two sided cutting inserts 15 mm / 0.6“
- two-sided, coated
- pack of 10 pcs
- only for premium milling heads		28015
The shorter four sided cutting inserts 8 mm / 0.3“
- four-sided, coated
- pack of 10 pcs
- only for premium milling heads with additional special roller		28008

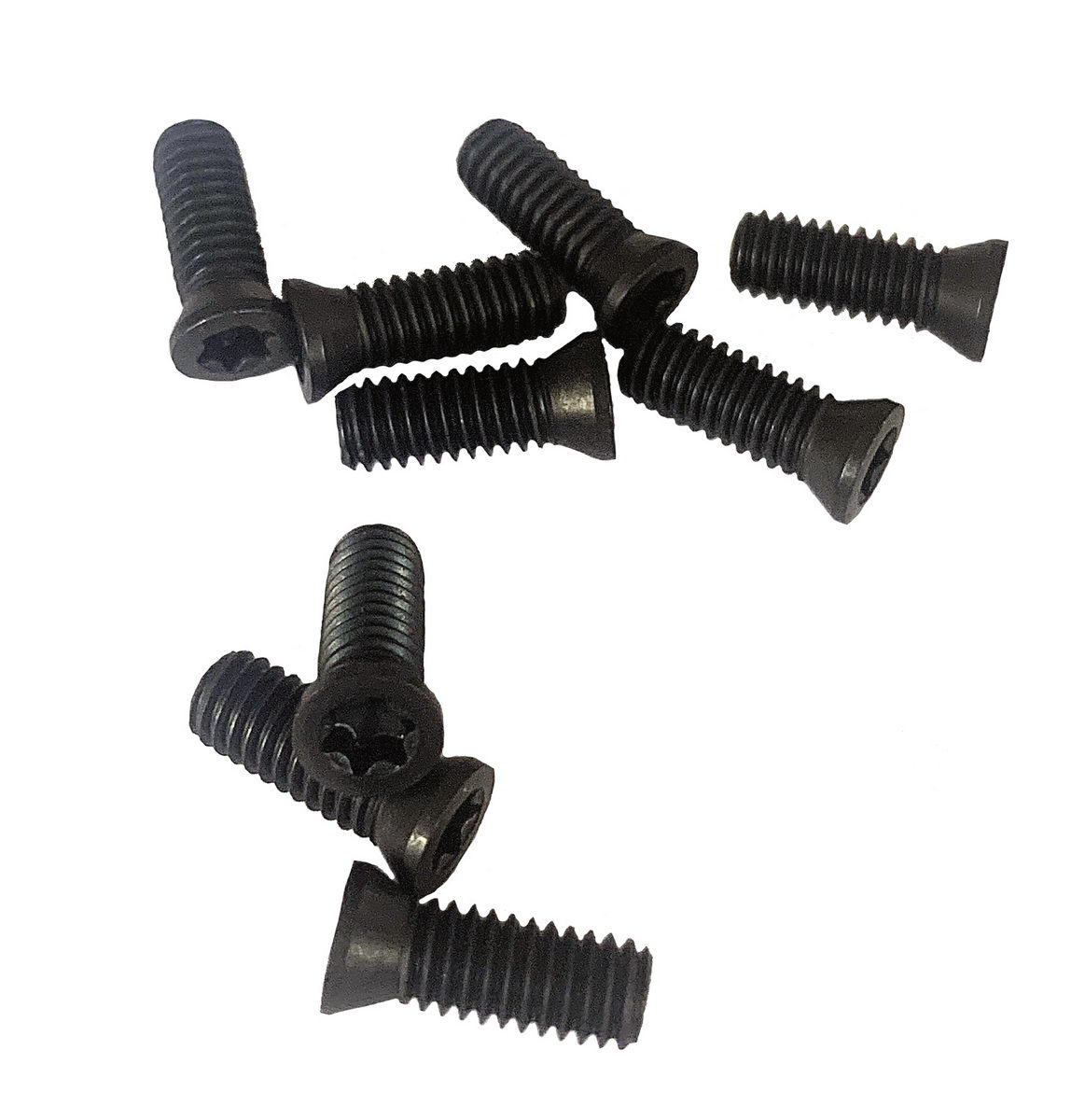

The fastening screws for cutting inserts (works with both cutting inserts versions)
- only for premium milling heads		28007

Accessories – Edge cleaner – grinding adapter:Art.Nr.

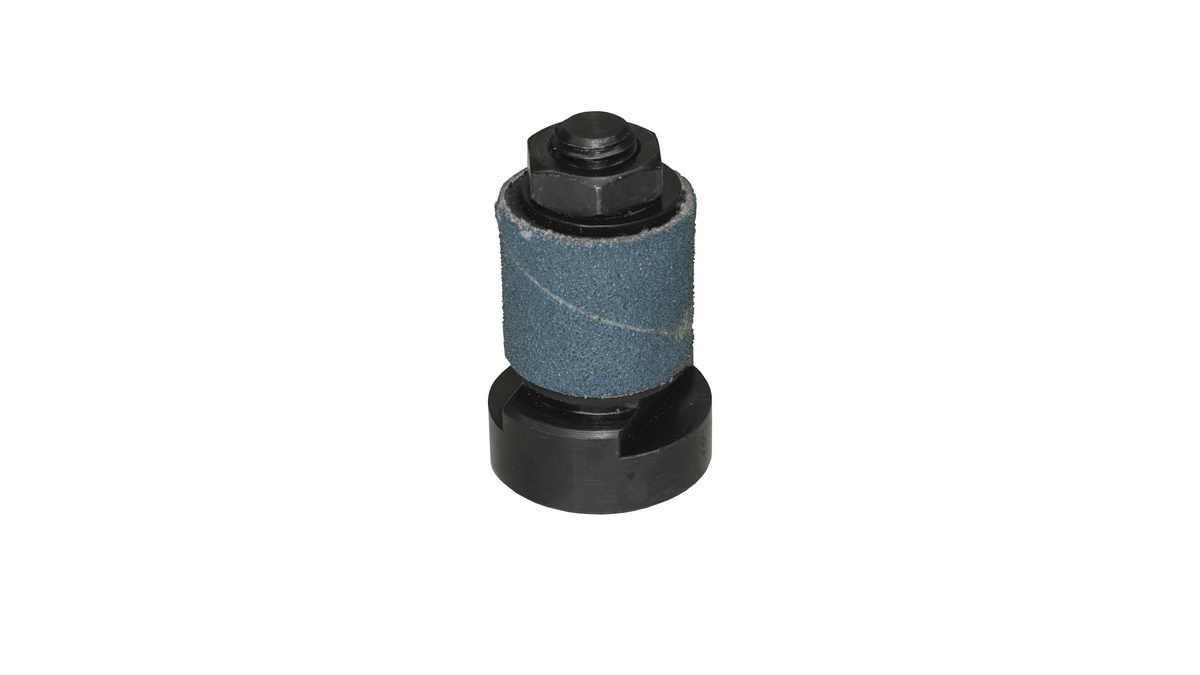

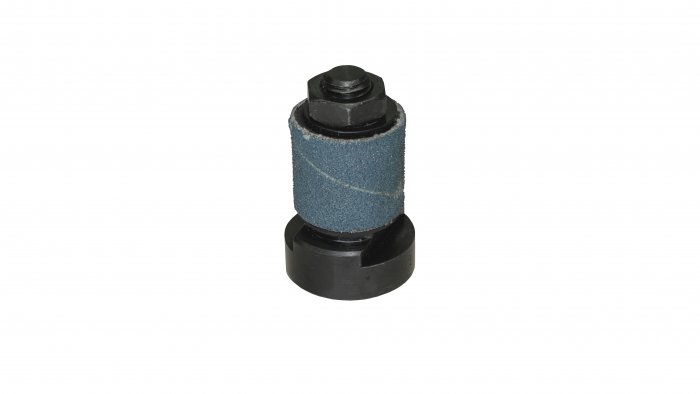

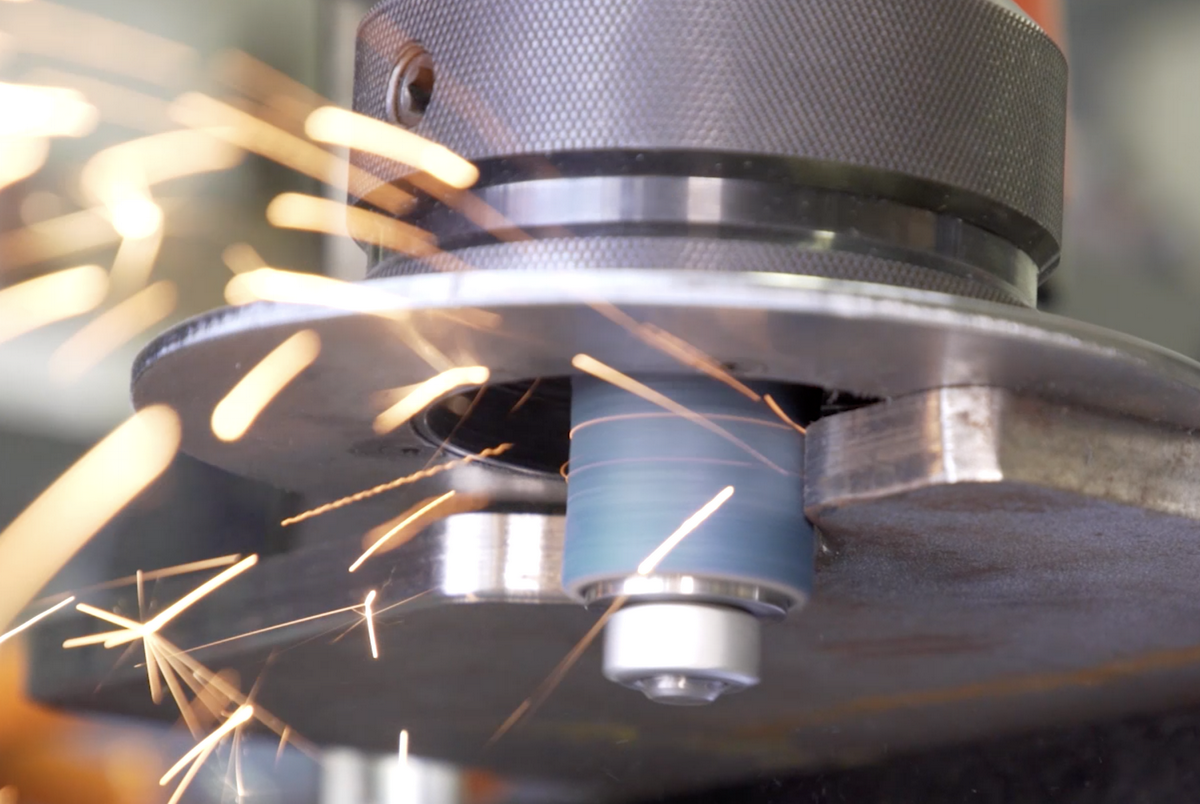

Edge Cleaner – grinding adapter
- including 10 pcs grinding rings grain 40, 1 pc guiding roller		25310

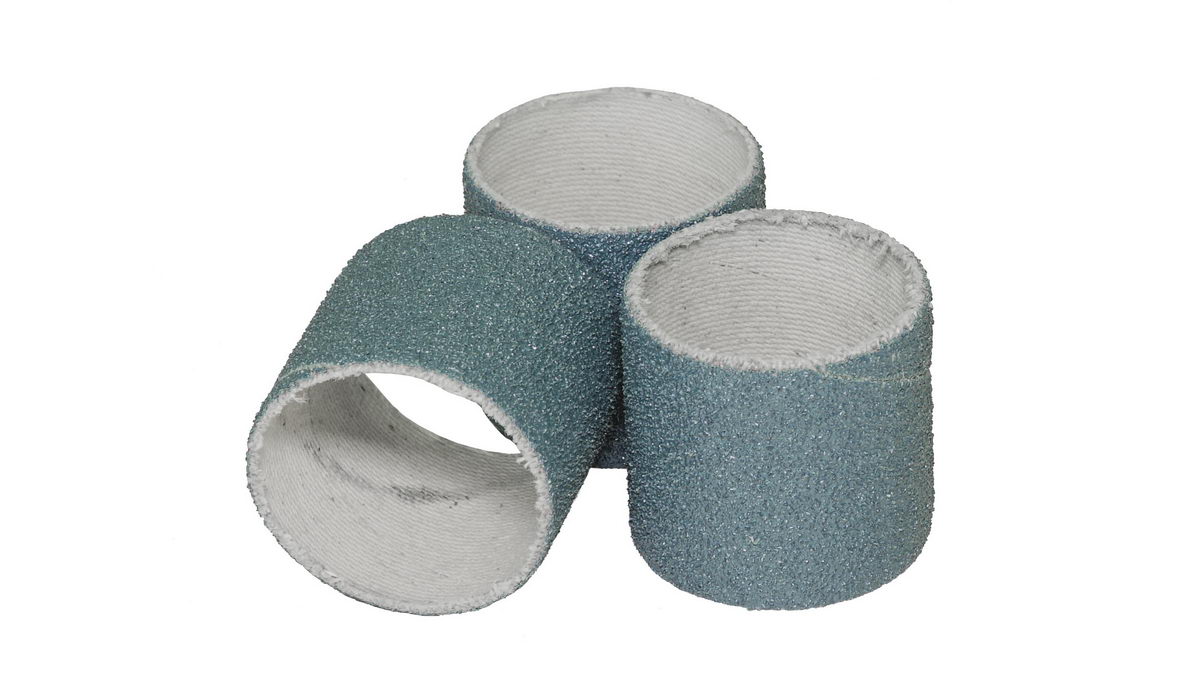

Grinding rings grain 40 for Edge Cleaner
- pack of 50 pcs		25312
Spare polyurethane guiding roller for Edge Cleaner25311

Accessories – The Rounding milling heads:Art.Nr.

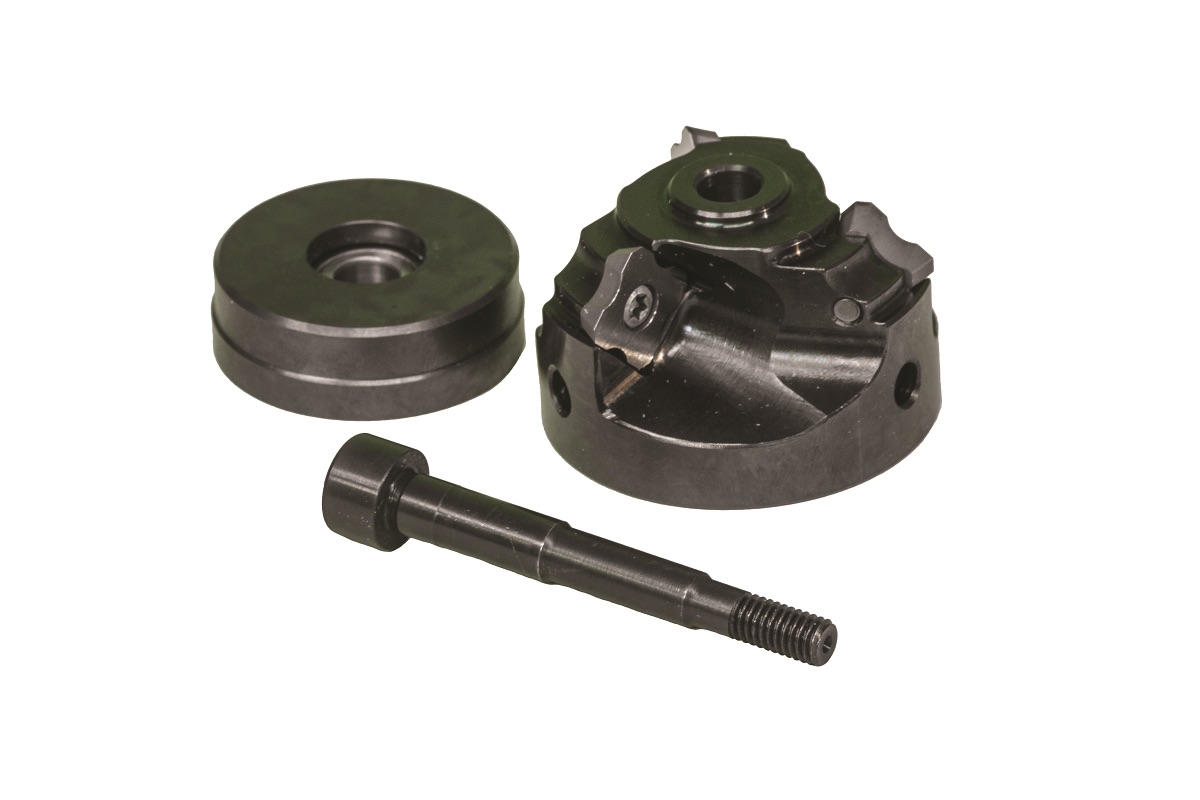

Complete radius milling head R2,5 mm / 0.08“
- including of the guiding roll and fastening screw, the cutting inserts are included
- the lead roller diameter Ø 30 mm / 1.19“		27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“
- including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included
- the lead roller diameter Ø 39,5 mm / 1.55“		27233

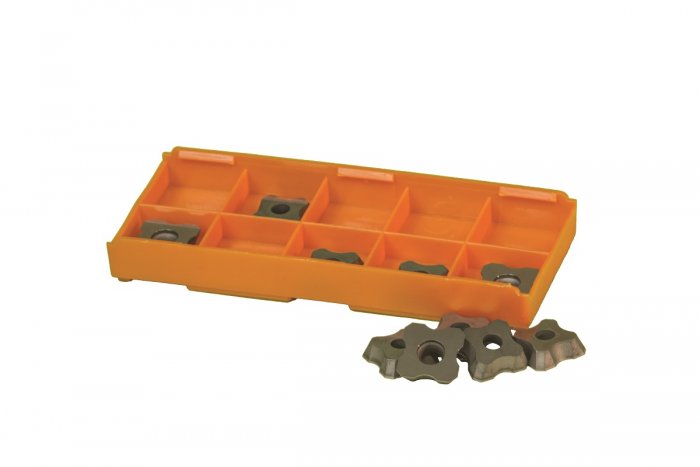

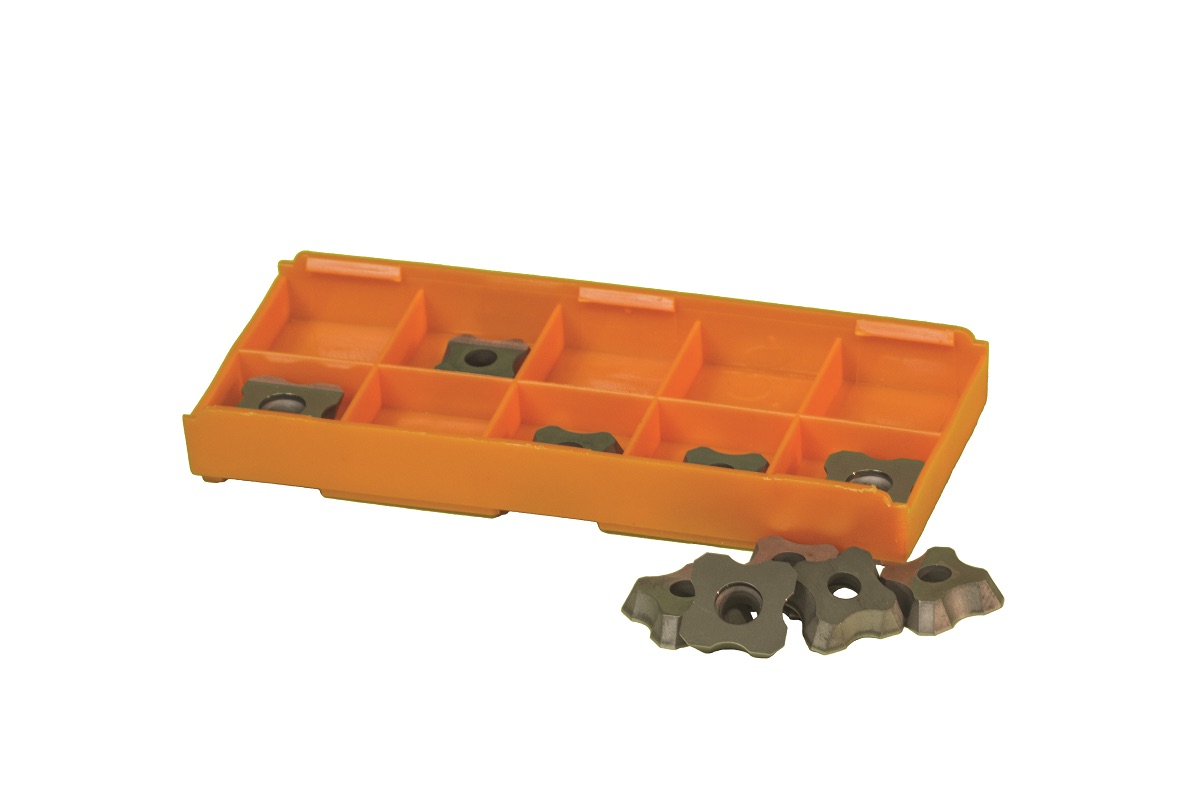

Cutting inserts for rounding edges R2,5 mm / 0.08“
- four-sided
- pack of 10 pcs		26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“
- four-sided
- pack of 10 pcs		26110
Coated cutting inserts for rounding edges R4 mm / 0.16“
- four-sided
- pack of 10 pcs		26111
The fastening screws for cutting inserts
- only for rounding milling heads		27242

Accessories – The older ECO milling heads. Available while supplied last.Art.Nr.
30° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 34 mm / 1.34“		27223
37,5° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27227

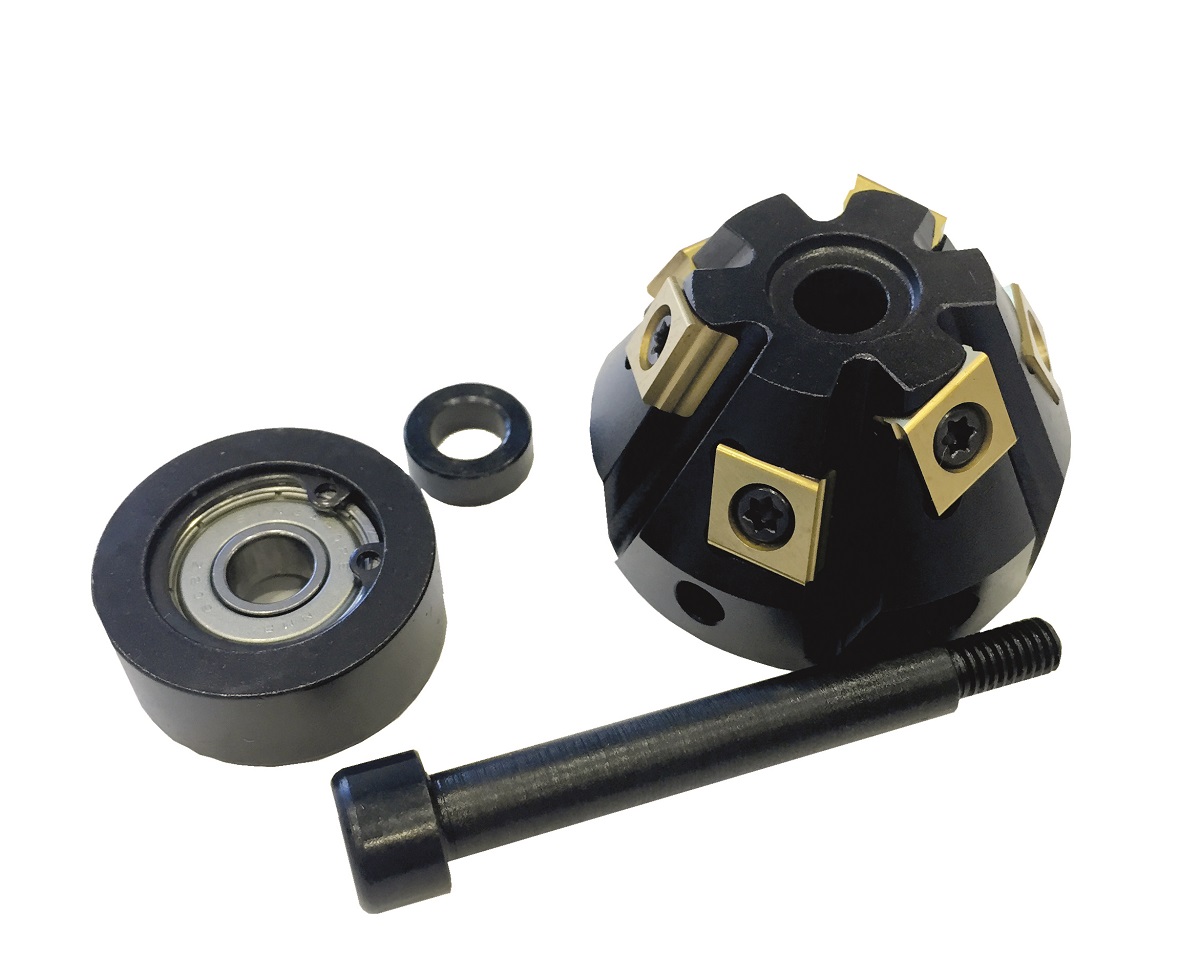

45° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27222
50° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27224
60° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 27 mm / 1.06“		27240
Cutting head with non-standard angle
- including inserts, screws, bolts and roller		27XXX

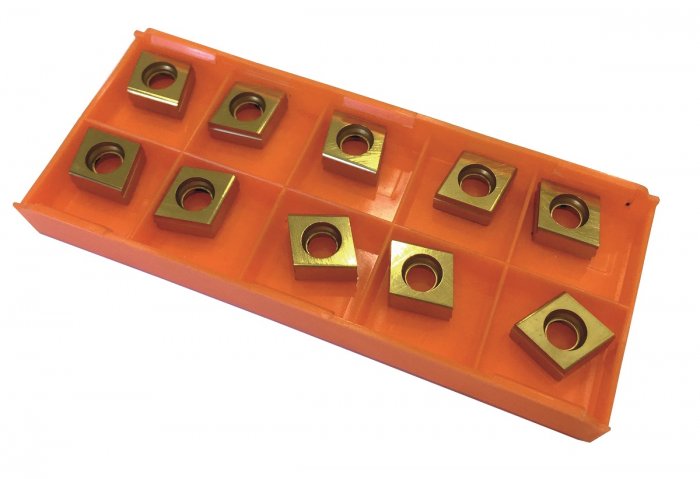

Coated cutting inserts
- four-sided
- pack of 10 pcs
- only for ECO milling heads		27231
Screw for the cutting inserts
- only for ECO milling heads		27241

Accessories – others:Art.Nr.
Dock station B-Dock
(beveler B10 Electra / B15 Electra is not included)		25350
Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“
(beveler B10 Electra / B15 Electra / B15 AIR is not included)		25500

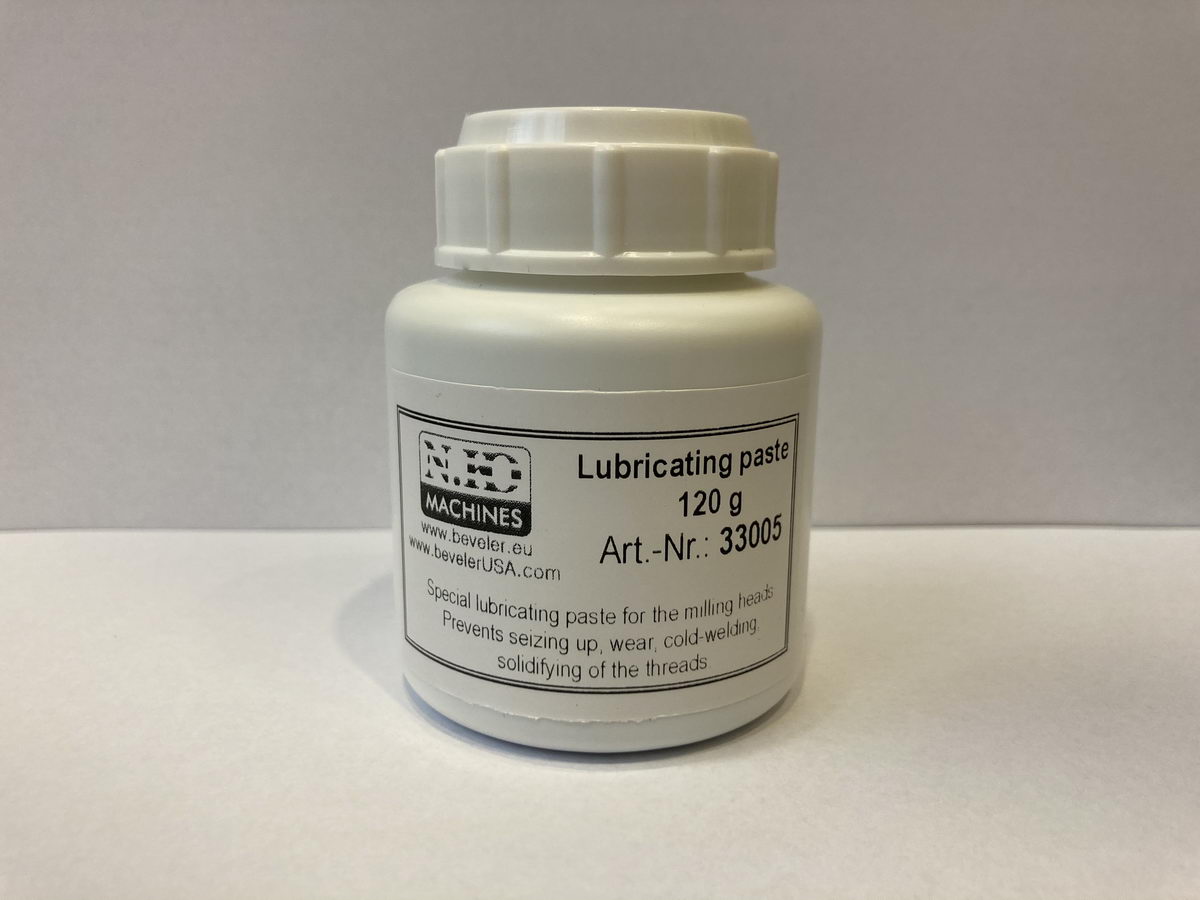

Special lubricating paste for the milling heads 120g
– prevents seizing up, wear, cold-welding, solidifying of the threads		33005

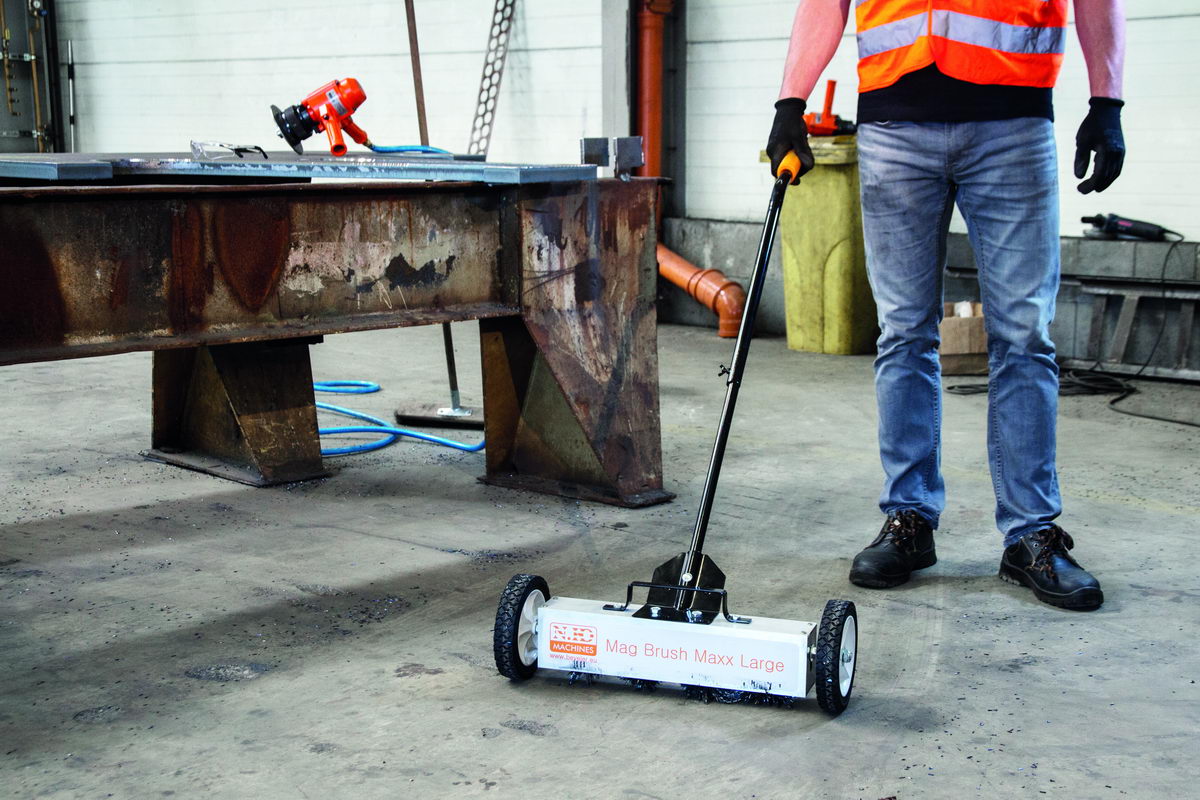

Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in		NMF0107

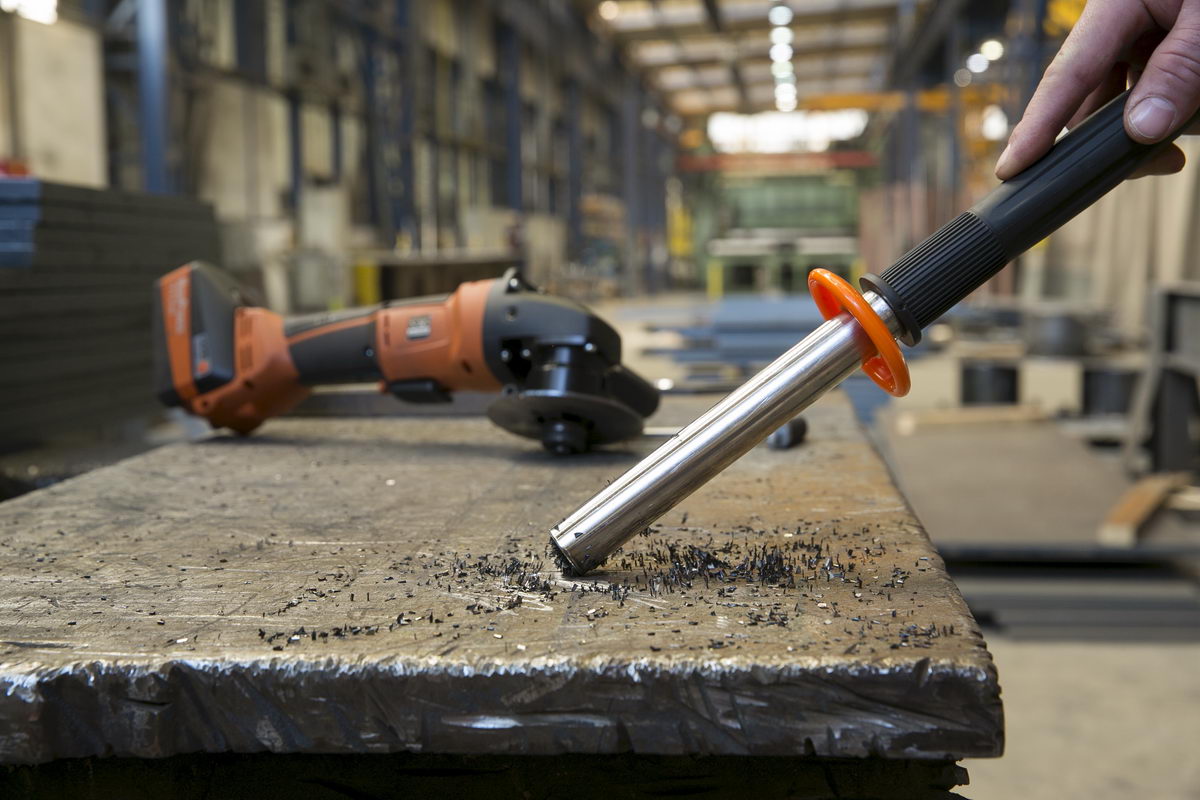

Mag Brush - collects all magnetic18654
