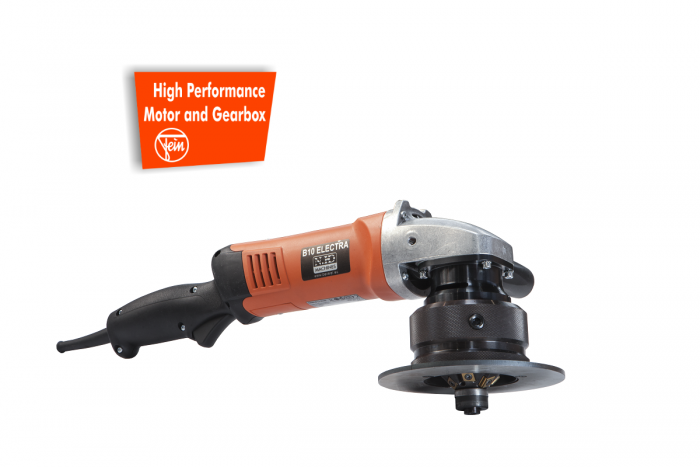

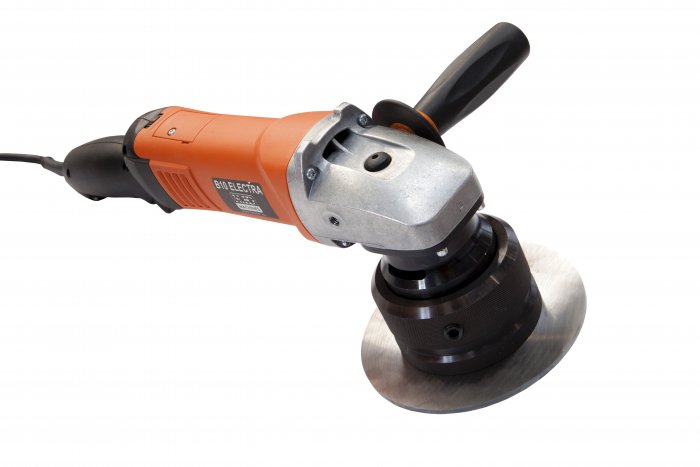

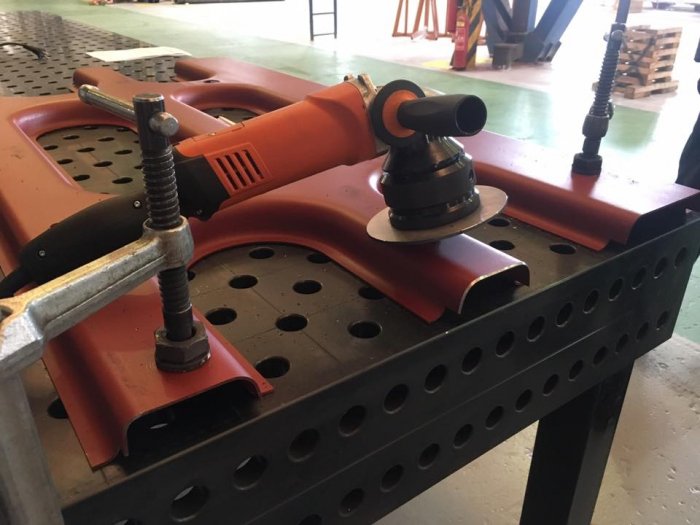

Beveler B10 ELECTRA (max. width of bevel 0,4" / 10mm)
With High Performance Motor And Gearbox Fein Power Tools

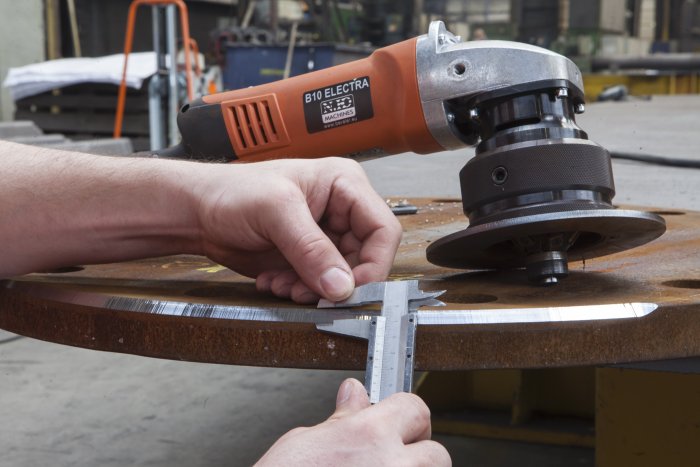

  • The beveler B10 ELECTRA is a heavy-duty hand held beveler which uses 6 indexable carbide inserts. The design allows straight edges, contours and cutouts to be beveled with ease.
  • Works with steel, aluminium, copper, plastic and other materials.
  • The precision dial scale allows precise adjustment of the chamfer height.
  • Replacable the tool holder for angle 30°, 37,5°, 45°, 50°, 60° other angles on demand.
  • ErgoGrip - unique, sophisticated and patent-pending ergonomic concept for fatigue-free work.
  • POWERtronic for enormous power, reserve capacity and extremely uniform speed under load.
  • Extensive operator protection thanks to KickBack Stop, self-start lock, soft start, and electronic overload protection.
  • AutoStop dead man's switch
  • Solid metal gear head.
  • Best vibration values in its class.
  • 13 ft long, HO7 industrial cable.

Technical data:
  • Power input: 1500 W (1700 W)
    (POWER FULL Motor made by FEIN TOOLS GERMANY for NKO MACHINES)
    About FEIN Power TOOLS
  • Voltage: 120V/60Hz (230 V/ 50 Hz)
  • No Load r.p.m.: 2 500 - 8 000RPM /(2700-8500 RPM)
  • Bevel width: 0-0,4" / 0 - 10 mm < 58 015 PSI / 400 MPa; 0 - 0,2" / 0 to 5mm > 58 015 PSI / 400 MPa
  • Net Weight: aprox. 13,3 lbs / 6 kg
  • Bevel angle: optional 30°, 37,5°, 45°, 50°, 60°, other angles on demand

Satisfaction Guaranteed
    If you are not completely satisfied with B10 ELECTRA you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, Beveler USA INC will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.

Included in the price:
  • Beveler B10 ELECTRA
  • Needed tools for operation
  • 1 operation manual
  • WITHOUT HEAD! Select the desired head angle

Machine name:

1Phase-120V
Bevelling and deburring system
B10 ELECTRA (without the milling head)		25301
SET Bevelling system B10 ELECTRA + dock station B-Dock (without the milling head)25303
SET Bevelling system B10 ELECTRA + Xpipe Beveler (without the milling head)25306
SET Bevelling system B10 ELECTRA + dock station B-Dock + Xpipe Beveler (without the milling head)25307

Accessories – PREMIUM milling heads:Art.Nr.

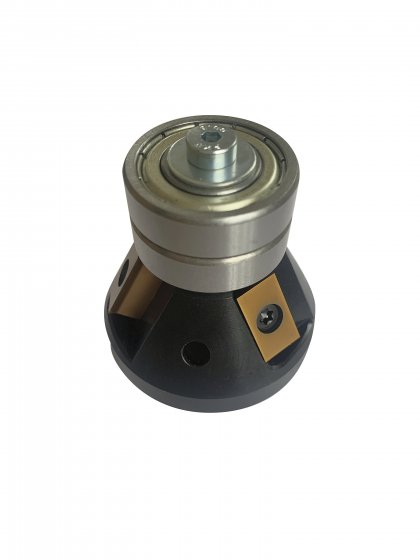

30° milling head PREMIUM
- the cutting inserts and the lead roller Ø 30 mm / 1.19“are included		27223X
37,5° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27227X
45° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27222X
50° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27224X

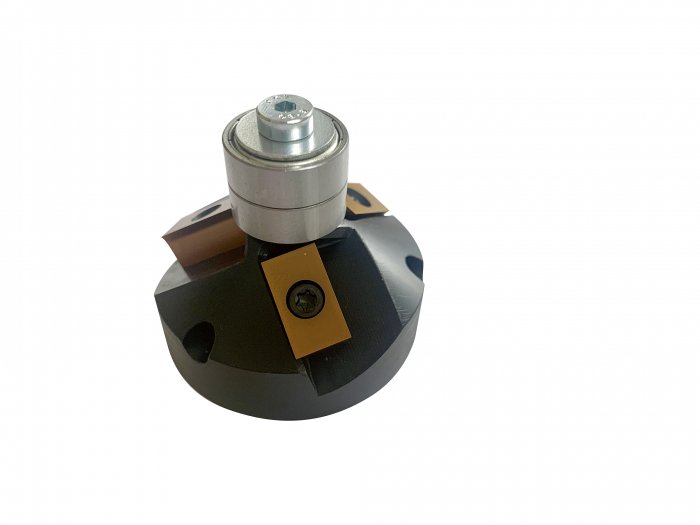

60° milling head PREMIUM
- the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included		27240X

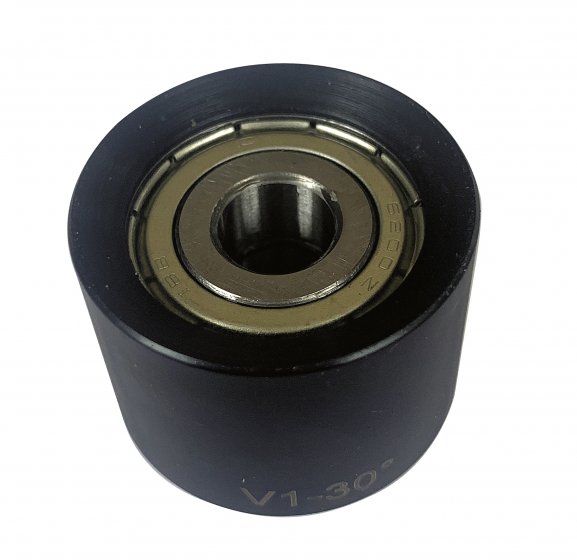

The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“28004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“28013

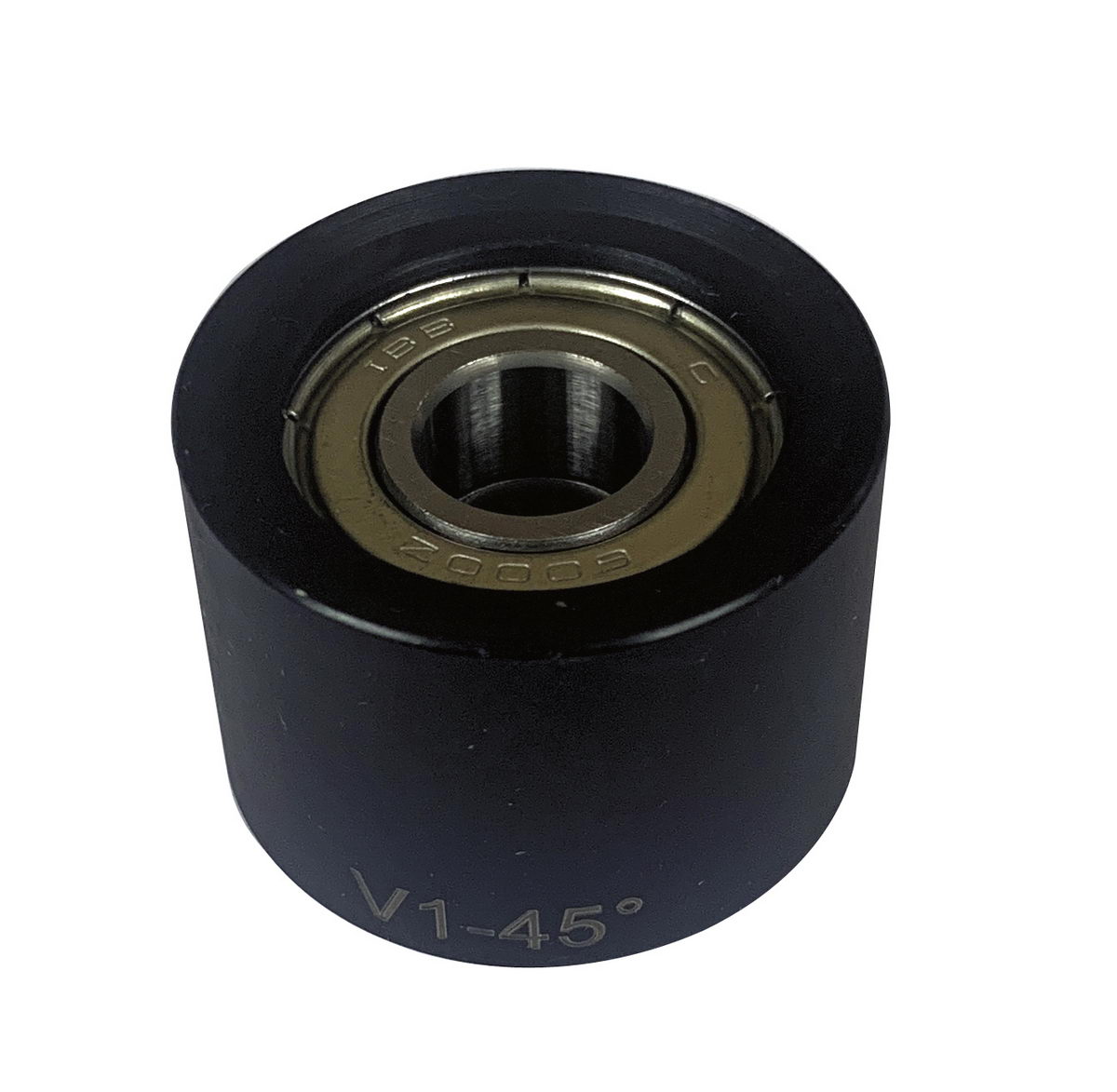

The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“28005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“28014

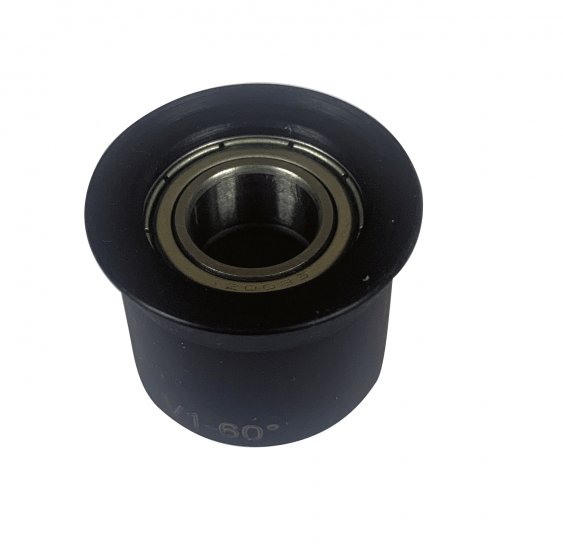

The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“28006

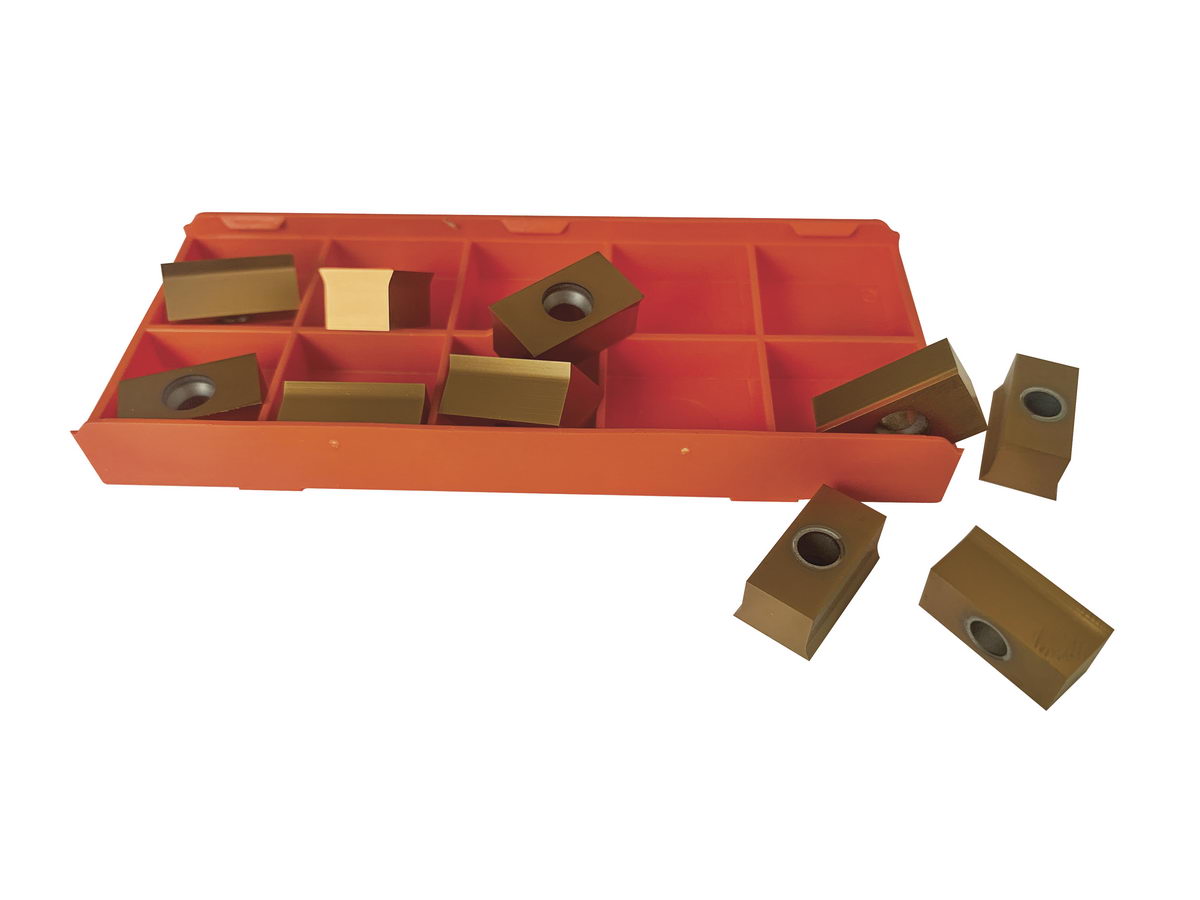

The spare two sided cutting inserts 15 mm / 0.6“
- two-sided, coated
- pack of 10 pcs
- only for premium milling heads		28015

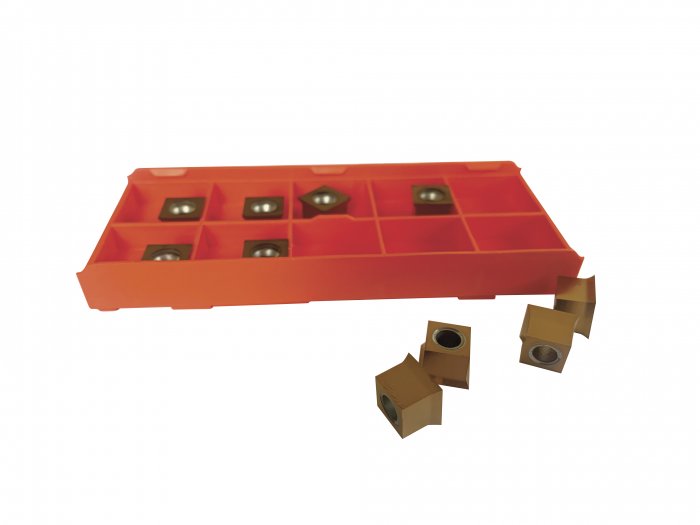

The shorter four sided cutting inserts 8 mm / 0.3“
- four-sided, coated
- pack of 10 pcs
- only for premium milling heads with additional special roller		28008

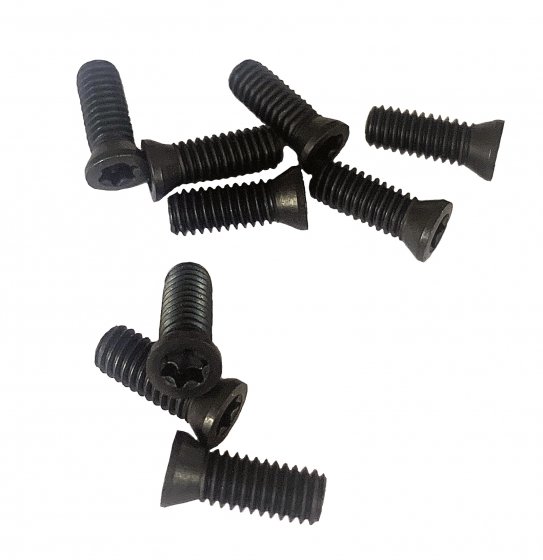

The fastening screws for cutting inserts (works with both cutting inserts versions)
- only for premium milling heads		28007

Accessories – Edge cleaner – grinding adapter:Art.Nr.

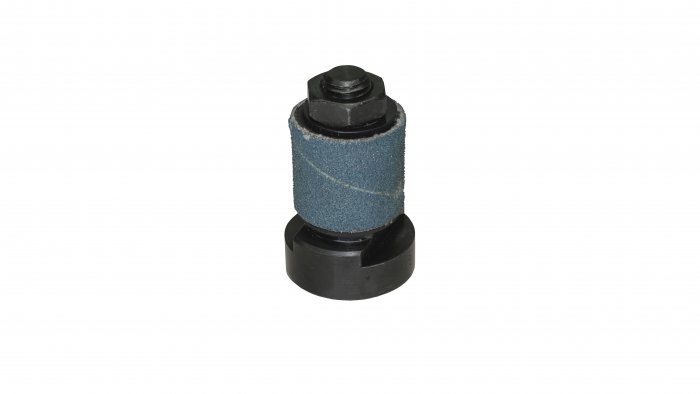

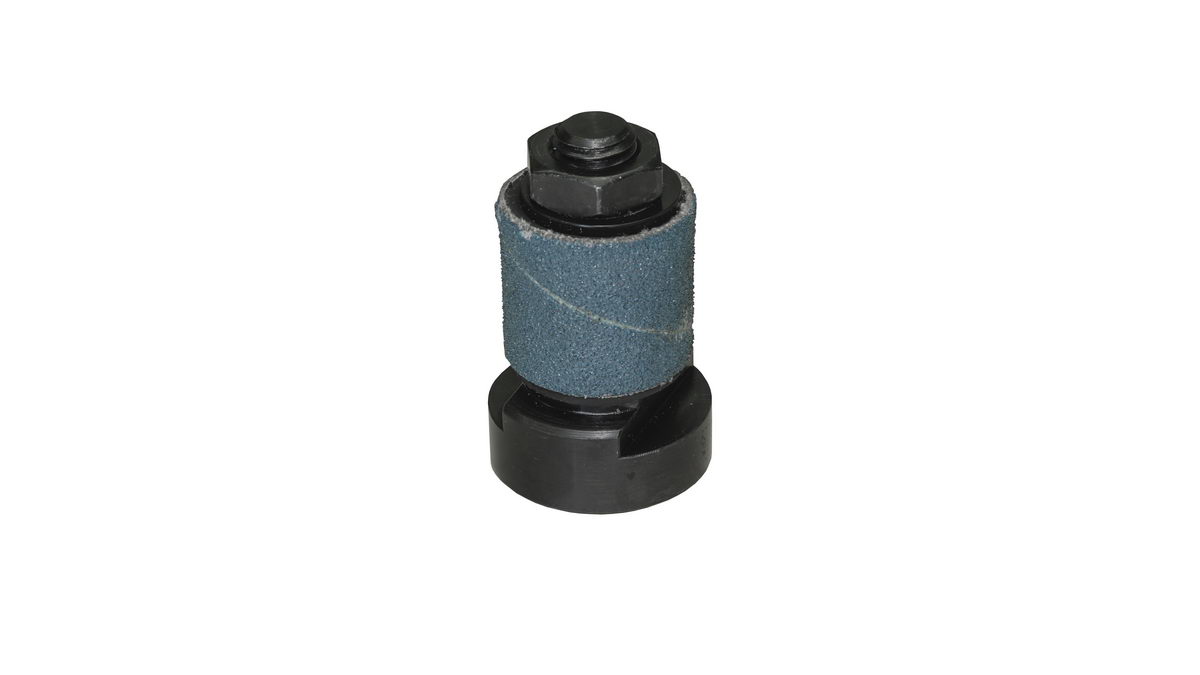

Edge Cleaner – grinding adapter
- including 10 pcs grinding rings grain 40, 1 pc guiding roller		25310
Grinding rings grain 40 for Edge Cleaner
- pack of 50 pcs		25312
Spare polyurethane guiding roller for Edge Cleaner25311

Accessories – The Rounding milling heads:Art.Nr.

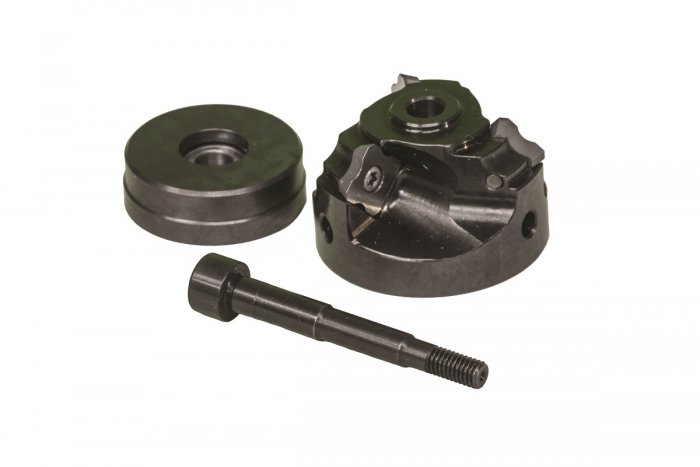

Complete radius milling head R2,5 mm / 0.08“
- including of the guiding roll and fastening screw, the cutting inserts are included
- the lead roller diameter Ø 30 mm / 1.19“		27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“
- including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included
- the lead roller diameter Ø 39,5 mm / 1.55“		27233

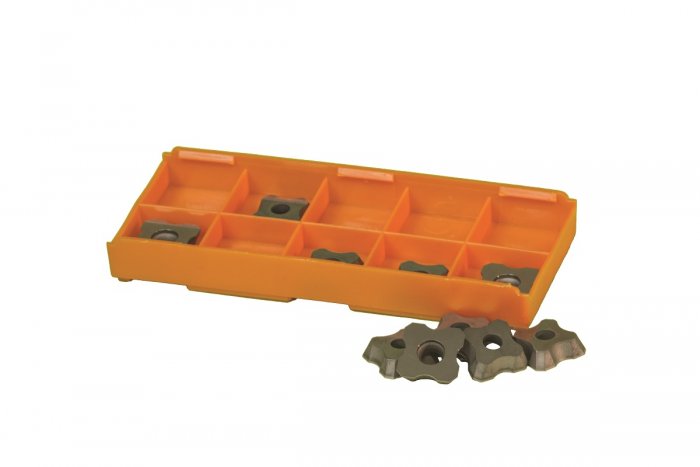

Cutting inserts for rounding edges R2,5 mm / 0.08“
- four-sided
- pack of 10 pcs		26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“
- four-sided
- pack of 10 pcs		26110
Coated cutting inserts for rounding edges R4 mm / 0.16“
- four-sided
- pack of 10 pcs		26111
The fastening screws for cutting inserts
- only for rounding milling heads		27242

Accessories – The older ECO milling heads. Available while supplied last.Art.Nr.
30° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 34 mm / 1.34“		27223
37,5° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27227
45° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27222
50° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27224
60° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 27 mm / 1.06“		27240
Cutting head with non-standard angle
- including inserts, screws, bolts and roller		27XXX

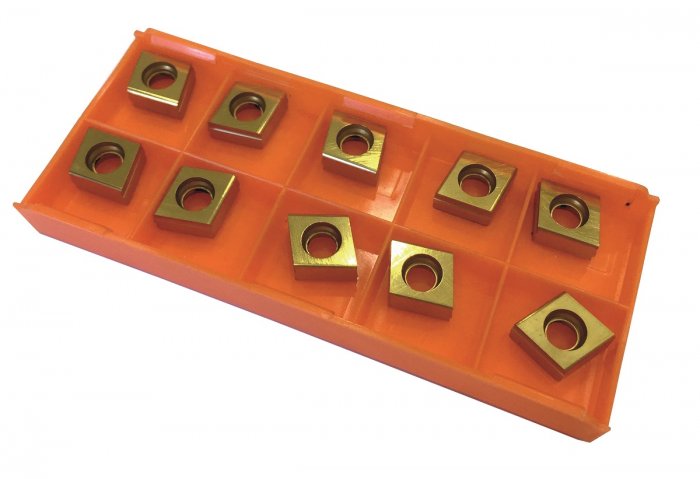

Coated cutting inserts
- four-sided
- pack of 10 pcs
- only for ECO milling heads		27231
Screw for the cutting inserts
- only for ECO milling heads		27241

Accessories – others:Art.Nr.
Dock station B-Dock
(beveler B10 Electra / B15 Electra is not included)		25350
Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“
(beveler B10 Electra / B15 Electra / B15 AIR is not included)		25500
Special lubricating paste for the milling heads 120g
– prevents seizing up, wear, cold-welding, solidifying of the threads		33005
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in		NMF0107
Mag Brush - collects all magnetic18654
