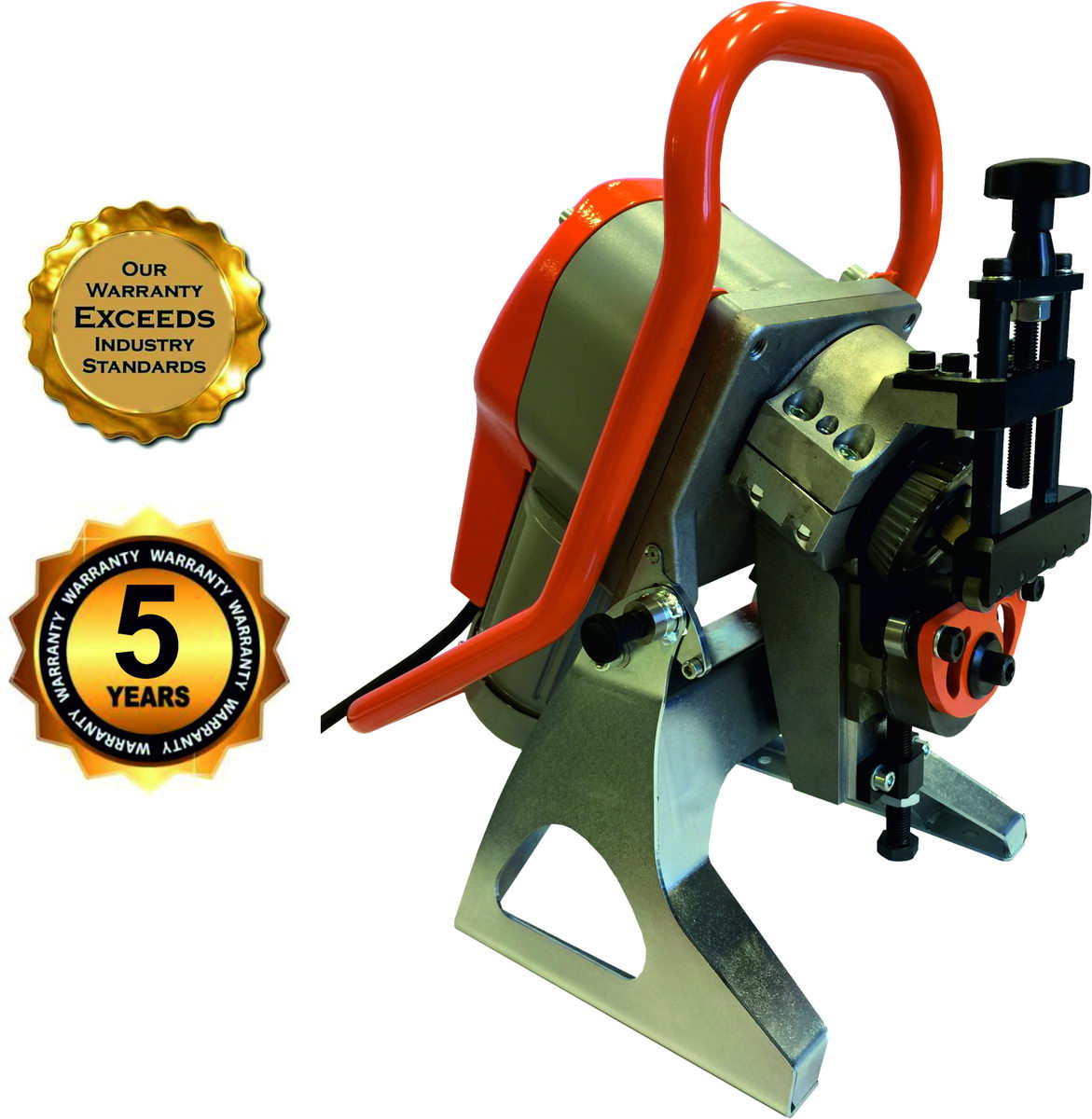

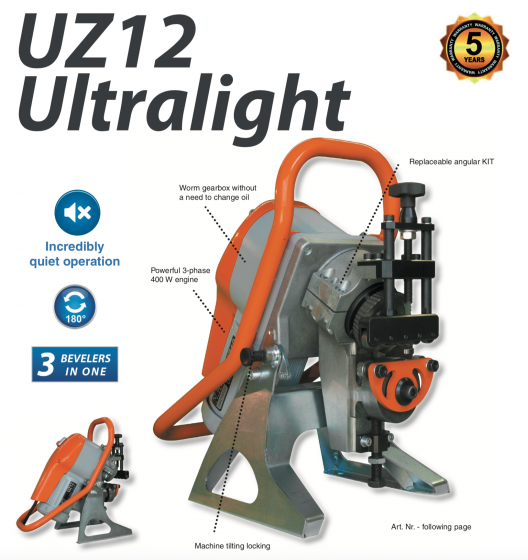

UZ12 ULTRALIGHT

Double Sided High Speed Beveler UZ 12 ULTRALIGHT (max. width of bevel 0,47" / 12 mm)

UZ12-ultralight bevelling system; the lightest bevelling system with automatic feeding on the market(max. width of bevel 12mm)

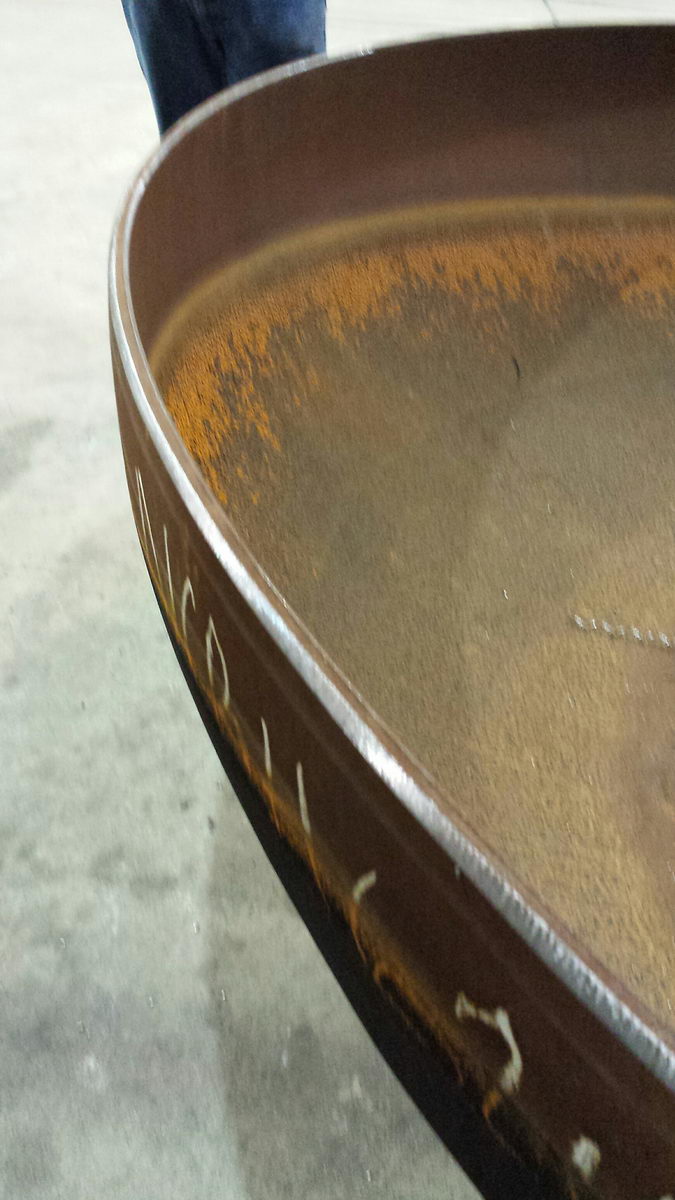

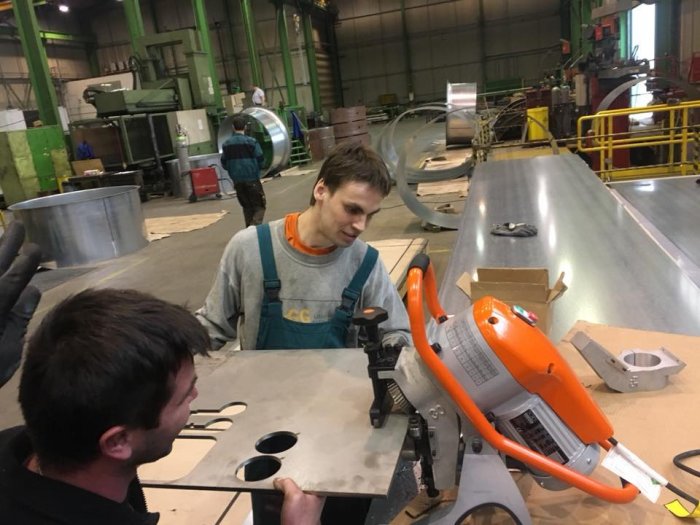

• UZ12 ULTRALIGHT creates welding-ready bevels on linear plates of any shearable material, including iron, steel (up to 101 526 PSI /70 kg/mm²), stainless steel, brass, copper and aluminum. It cuts bevels from 0,12" to 1,38" / 3 to 35 mm in thickness, with a minimum plate width of 2,56" / 65 mm (depends on the angle) and plate length of 1,18" / 30 mm.

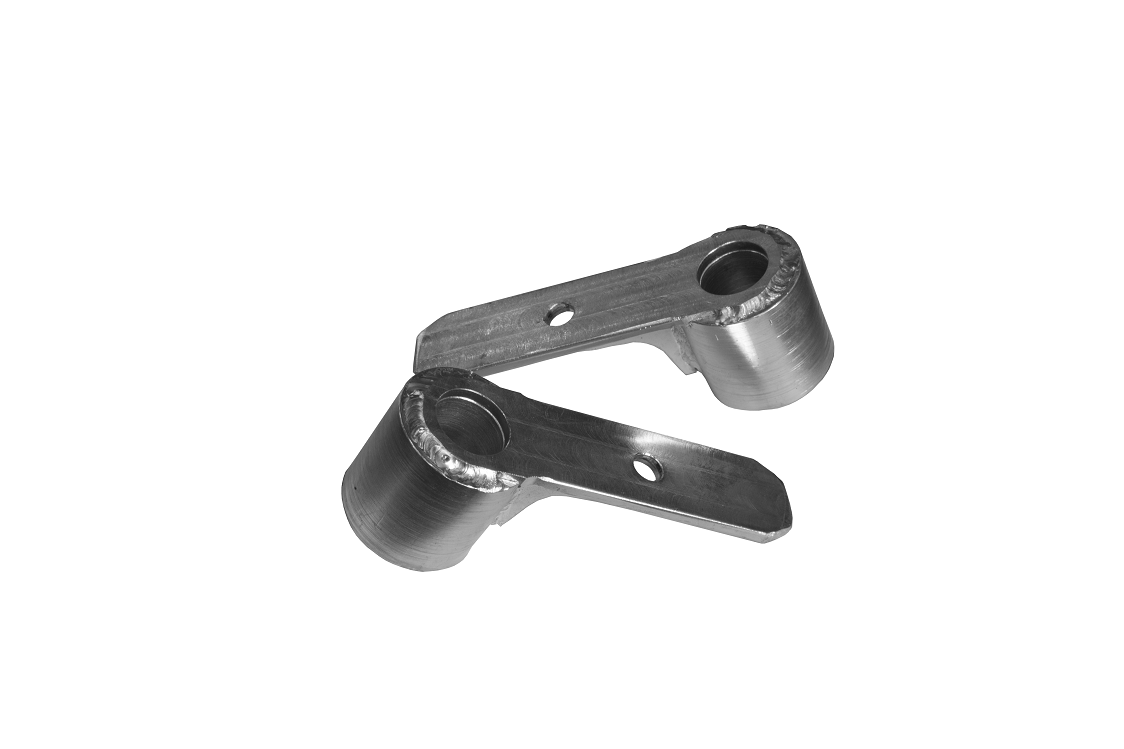

• The Beveling of the tubes from ID 3,75" / 95mm.
• Incredibly silent running of the machine.
• The beveling angle adjustable by the help of the kit for needed angle. Available are kits for 30; 45; 37,5; 22,5 and 50 degrees.
• The pressure bar unit and the piece supporting unit can be adjusted in height and are supplied with visible graduated scale.

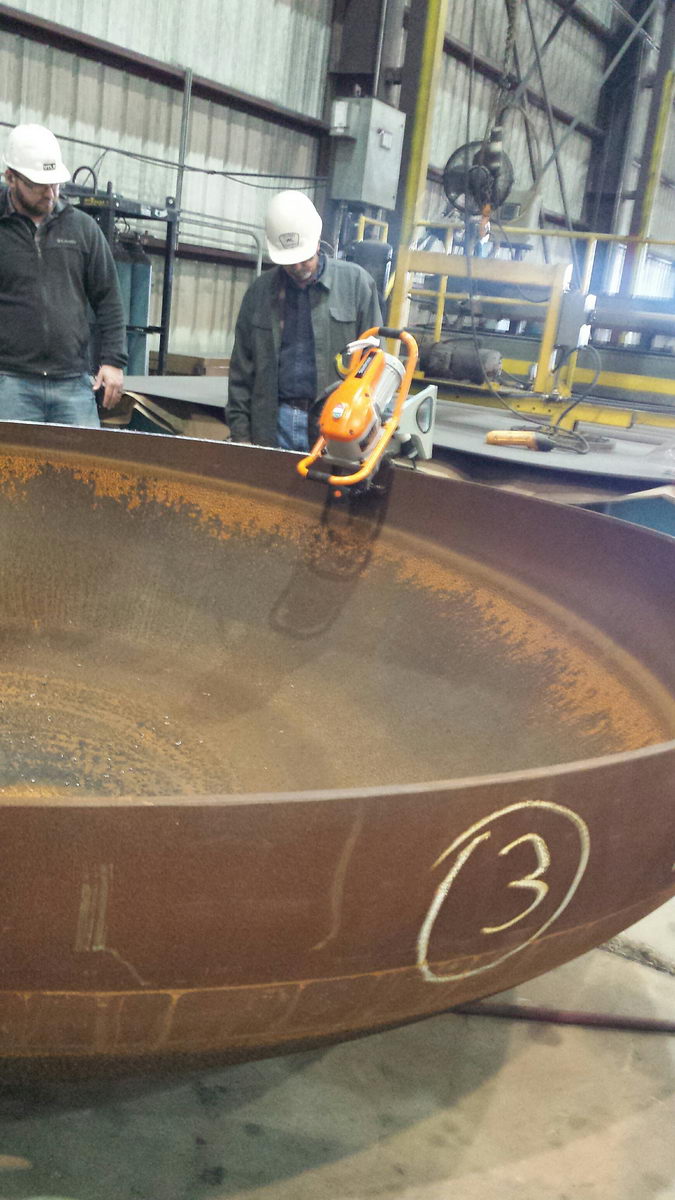

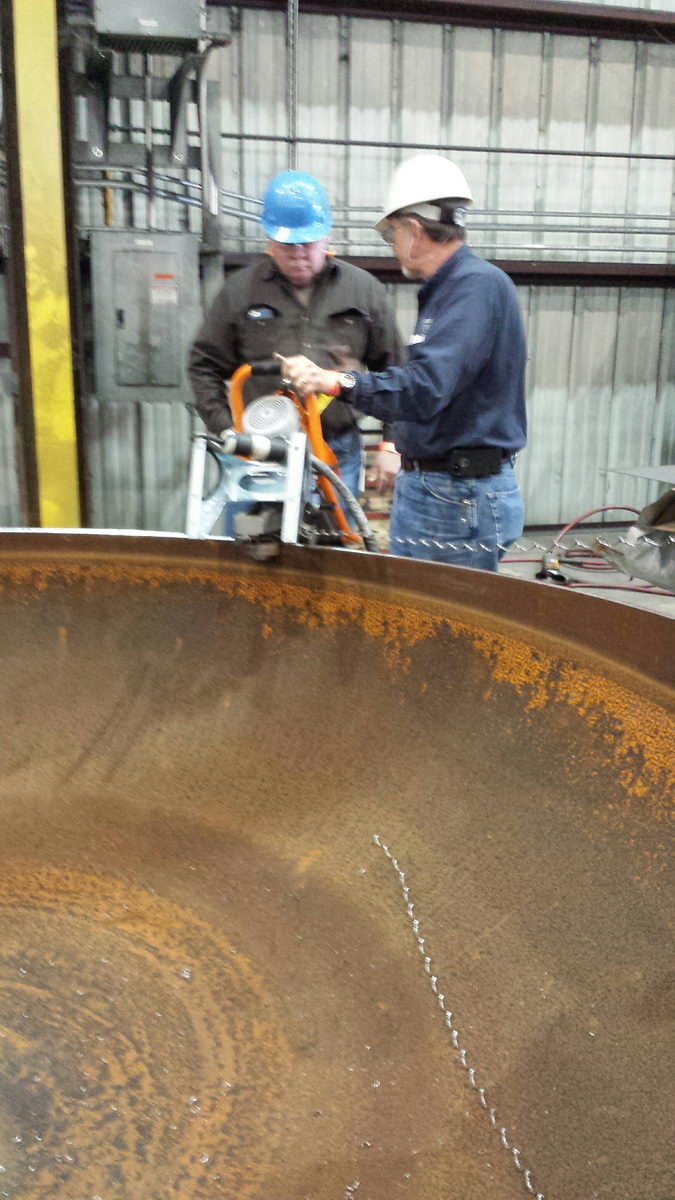

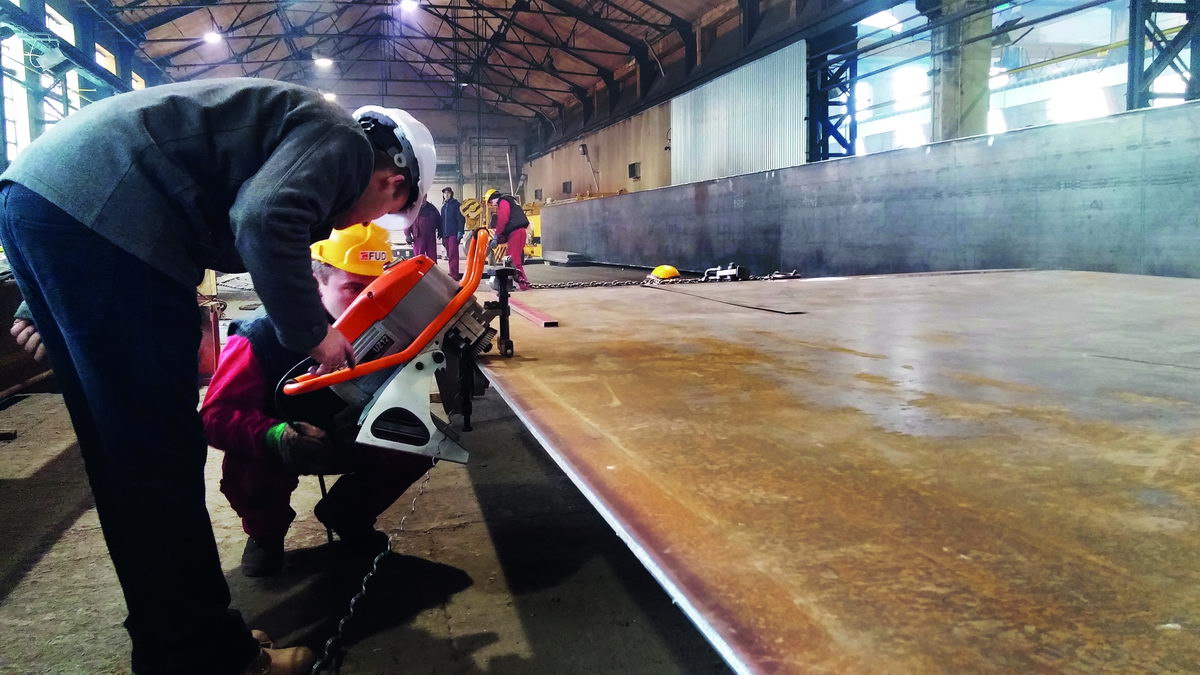

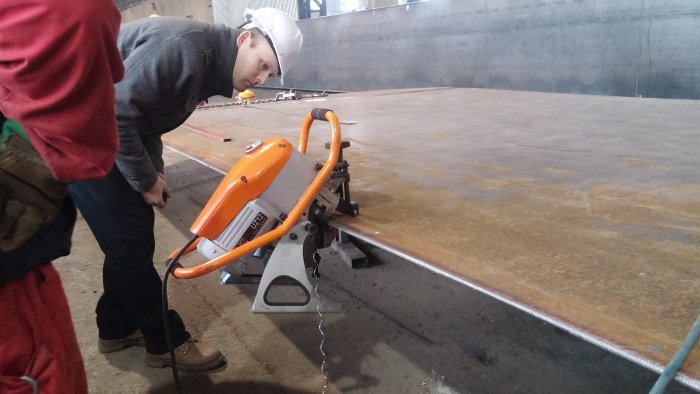

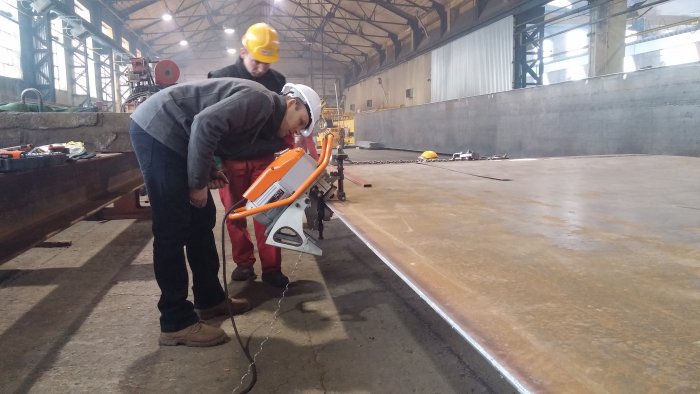

• It can be hooked to the piece to be machined in either a horizontal or vertical position. The machine can be inverted in order to bevel the bottom side of the plate. Both X and K bevels are possible.
• The total weight of the machine is very low and only one person is necessary for operation of our UZ12 Ultralight
• Inversion allows for creation of a double-sided bevel – no need to rotate or flip heavy material

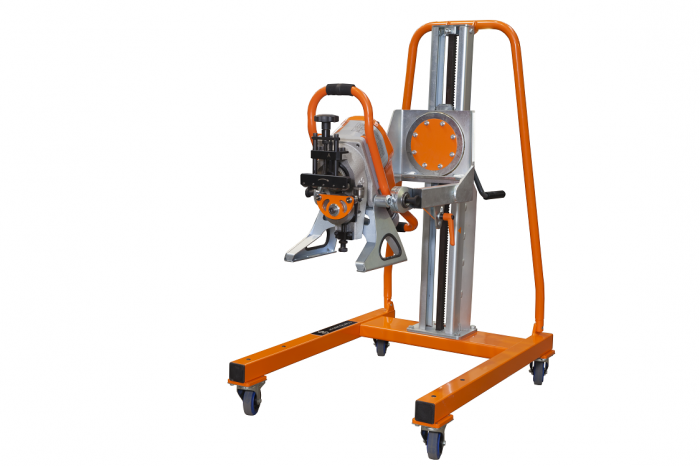

• Functions as a stationary or a moveable station
