Beveler with huge power - B15 AIR

Print Share
Hand operated air beveller B15air Hand operated air beveller B15air Hand operated air beveller B15air Hand operated air beveller B15air Hand operated air beveller B15air Hand operated air beveller B15air Hand operated air beveller B15air Hand operated air beveller B15air Cutting head PREMIUM 27222X Cutting head PREMIUM 27223X Cutting head PREMIUM 27240X Coated cutting inserts 28015 Coated cutting inserts 28008 Roller 28004 Roller 28005 Roller 28006 Cutting head 27227 / 27224 Coated cutting inserts 27231 Edge rounding cutter 27234 / 27233 Cutting inserts for rounding edges 26109 / 26110 / 26111 Grinding adapter - Edge cleaner 25310 Grinding rings grain 40 - 25312 Screws 28007

Pneumatic bevelling machine B15 AIR (B15 AIR-S)
- Edge rounding function
 (Maximum bevel width 15 mm / 0.6 in.)


Designed for bevelling and deburring of straight and shaped parts, internal and external radiuses and holes.
Specially designed for producing visual bevels and welding preparation.
Powerful pneumatic drive for extreme loads.
  • Scale for accurate bevel size adjustment.
  • For bevelling and deburring steel, aluminium and other materials.
  • Replaceable head for changing bevel angle.
  • Handheld powerful equipment.
  • Also suitable for explosion-risk operations.
  • Edge rounding function, preparation before surface treatment.
  • Low RPM model for processing of stainless steel.
  • Manufactured in Czech Republic.
Technical data:

  • Max. bevel width:
0 to 15 mm / 0 to 0.6 in < 400 MPa / 58 015 PSI
0 to 8 mm / 0 to 0.3 in > 400 MPa / 58 015 PSI
  • Bevel angle:
replaceable head 0° / 30° / 37,5° / 45° / 50° / 60° - other angles on demand
  • Rounding Radius:
R 2,5 mm / R 3,5 mm / R 4 mm
R 0.1 in / R 0.14 in / R 0.16 in
  • Motor: 2.984 W
  • Speed: 6000 RPM (B15 AIR-S - 4.200 RPM)
  • Air consumption: 750 l/min
  • Operating pressure: 6 bar / 87.02 PSI
  • Feeding: manual
  • Weight: 7,5 kg / 16.5 lb


Included it the price:
  • Beveling system B15 AIR without milling head
  • Packet in a cardboard
  • Operating tools
  • User manual

Satisfaction Guaranteed
If you are not completely satisfied with one of our products you may return it any time within 30 days of the date of Sale for a hassle-free refund of the amount paid for the product. We only specify that the product not be used, damaged, missing components or manufacturer's documentation. Refunds do not include shipping costs. On exchange of defective products, Beveler USA INC will pay for shipping on the outbound replacement product only. Special order or non-stocking items are specifically exempted from this policy and will be assessed an appropriate re-stocking charge. Place your name and order number on the package for efficient identification, and insure all returns for your protection. Please note that we do not pay the shipping charges involved in returning goods.

Machine name:
Art. Nr.
Bevelling and deburring system
B15 AIR (without the milling head)		27220
Bevelling and deburring system
B15 AIR-S – low RPM version for stainless steel (without the milling head)		27220S
SET Bevelling and deburring system
B15 AIR + Xpipe Beveler (without the milling head)		27225
SET Bevelling and deburring system
B15 AIR-S – low RPM version for stainless steel + Xpipe Beveler (without the milling head)		27225S

Accessories – PREMIUM milling heads:Art.Nr.

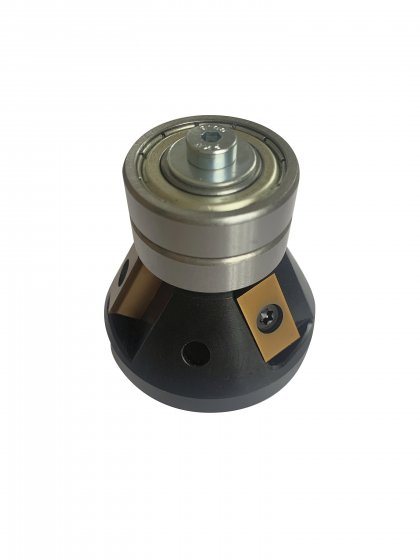

30° milling head PREMIUM
- the cutting inserts and the lead roller Ø 30 mm / 1.19“are included		27223X
37,5° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27227X
45° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27222X
50° milling head PREMIUM
- the cutting inserts and the lead roller Ø 26 mm / 1.02“ are included		27224X

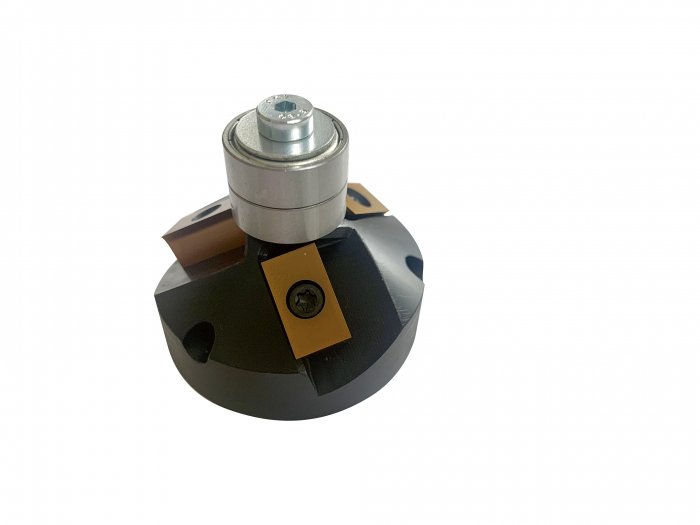

60° milling head PREMIUM
- the cutting inserts and the lead roller Ø 19 mm / 0.75“ are included		27240X
The additional special roller 30° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 33,5 mm / 1.32“28004
The additional special roller 37,5° for shorter cutting inserts 8 mm / 0.3“28013
The additional special roller 45° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 31 mm / 1.23“28005
The additional special roller 50° for shorter cutting inserts 8 mm / 0.3“28014

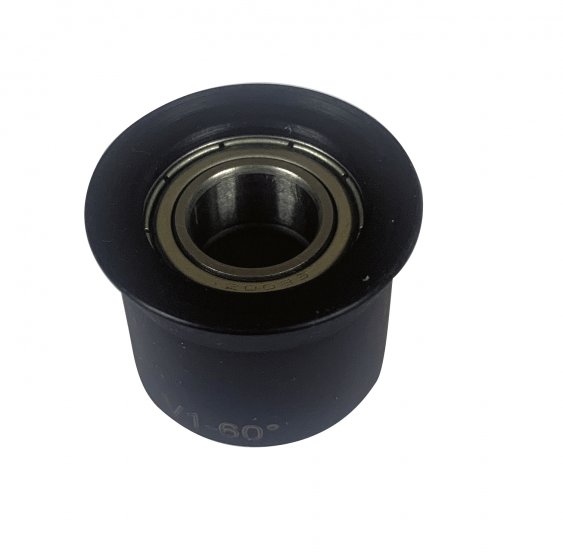

The additional special roller 60° for shorter cutting inserts 8 mm / 0.3“ - diameter Ø 25,5 mm / 1.01“28006
The spare two sided cutting inserts 15 mm / 0.6“
- two-sided, coated
- pack of 10 pcs
- only for premium milling heads		28015

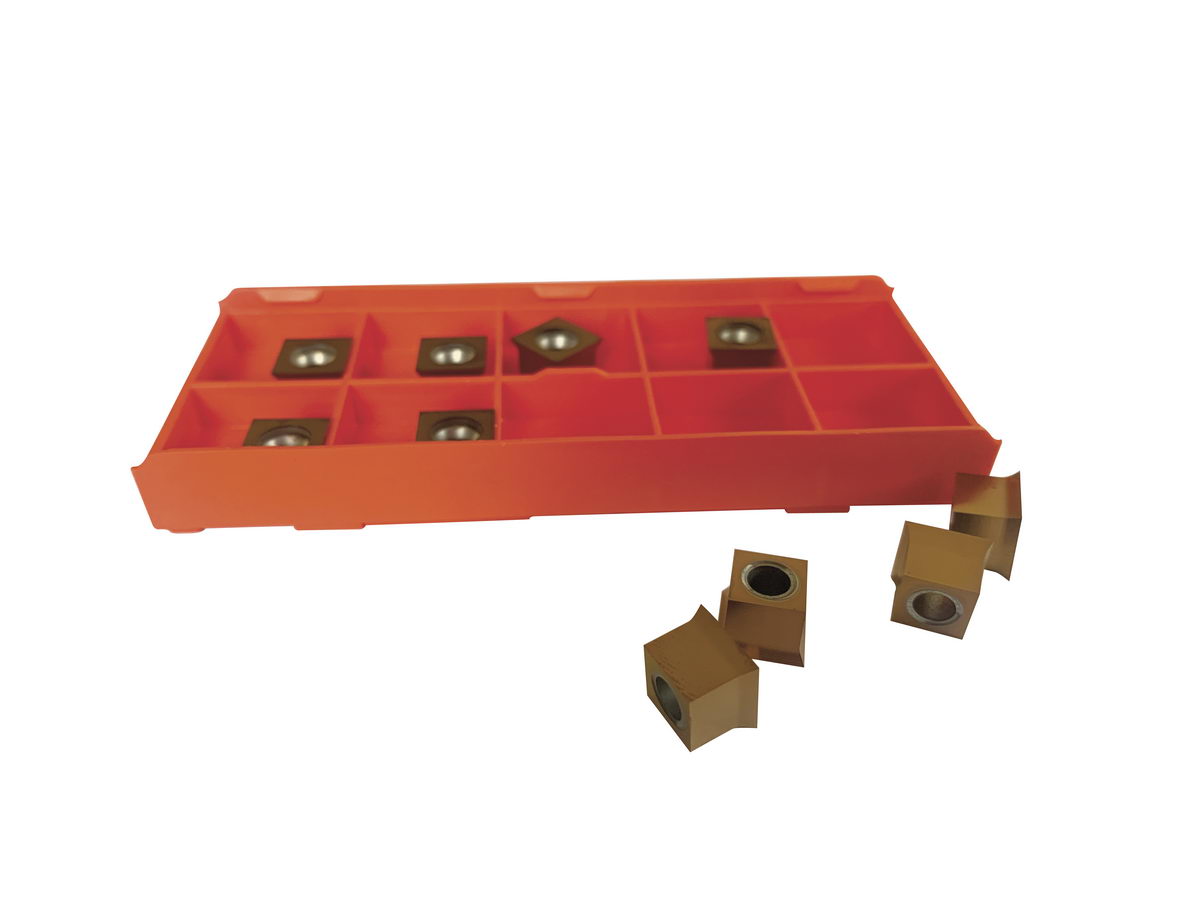

The shorter four sided cutting inserts 8 mm / 0.3“
- four-sided, coated
- pack of 10 pcs
- only for premium milling heads with additional special roller		28008

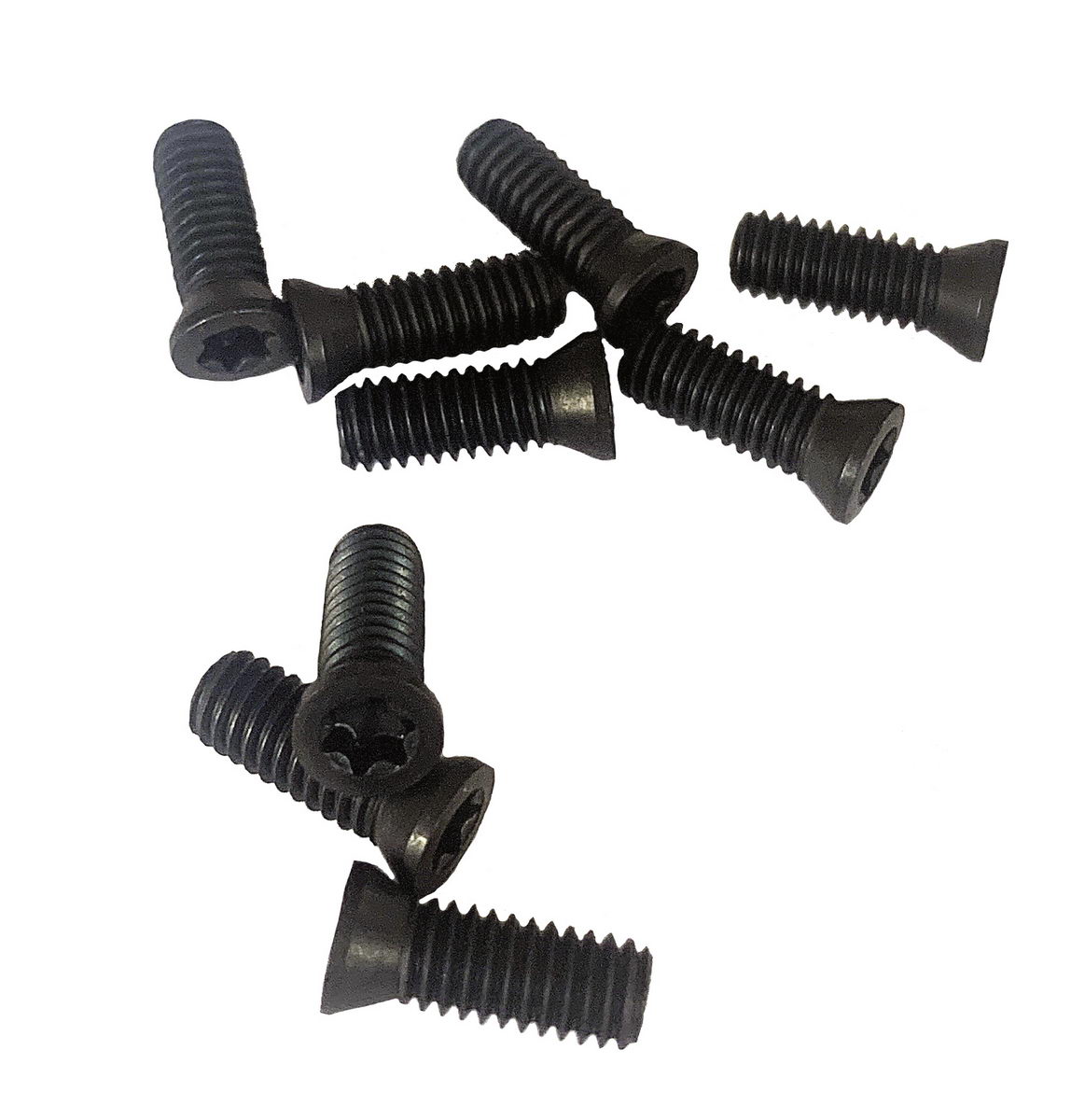

The fastening screws for cutting inserts (works with both cutting inserts versions)
- only for premium milling heads		28007

Accessories – Edge cleaner – grinding adapter:Art.Nr.
Edge Cleaner – grinding adapter
- including 10 pcs grinding rings grain 40, 1 pc guiding roller		25310
Grinding rings grain 40 for Edge Cleaner
- pack of 50 pcs		25312
Spare polyurethane guiding roller for Edge Cleaner25311

Accessories – The Rounding milling heads:Art.Nr.
Complete radius milling head R2,5 mm / 0.08“
- including of the guiding roll and fastening screw, the cutting inserts are included
- the lead roller diameter Ø 30 mm / 1.19“		27234
Complete radius milling head R3,5 mm / 0.12“ and R4 mm / 0.16“
- including of the guiding roll and fastening screw, the cutting inserts R3,5 mm / 0,12“ are included
- the lead roller diameter Ø 39,5 mm / 1.55“		27233
Cutting inserts for rounding edges R2,5 mm / 0.08“
- four-sided
- pack of 10 pcs		26109
Coated cutting inserts for rounding edges R3,5 mm / 0.12“
- four-sided
- pack of 10 pcs		26110
Coated cutting inserts for rounding edges R4 mm / 0.16“
- four-sided
- pack of 10 pcs		26111
The fastening screws for cutting inserts
- only for rounding milling heads		27242

Accessories – The older ECO milling heads. Available while supplied last.Art.Nr.
30° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 34 mm / 1.34“		27223
37,5° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27227
45° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27222
50° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 28 mm / 1.10“		27224
60° cutting head
- including inserts, screws, bolts and roller
- guide roller diameter Ø 27 mm / 1.06“		27240
Cutting head with non-standard angle
- including inserts, screws, bolts and roller		27XXX
Coated cutting inserts
- four-sided
- pack of 10 pcs
- only for ECO milling heads		27231
Screw for the cutting inserts
- only for ECO milling heads		27241

Accessories – others:Art.Nr.
Pneumatic set with quick couplings (contains: FRL – filtration, regulator and lubrication unit, quick couplings, hoses 10 m)27221
Xpipe Beveler – bevelling tool for machining of pipes from Ø 85 mm / 3.36“
(beveler B10 Electra / B15 Electra / B15 AIR is not included)		25500
Special lubricating paste for the milling heads 120g
– prevents seizing up, wear, cold-welding, solidifying of the threads		33005
Mag Brush Maxx Large
– magnetic sweeper equipped with wheels for collecting all magnetic materials – working width 450 mm / 17.71 in		NMF0107
Mag Brush - collects all magnetic18654
